Mold Making Tutorial: Silicone Mold of Clay Sculpture

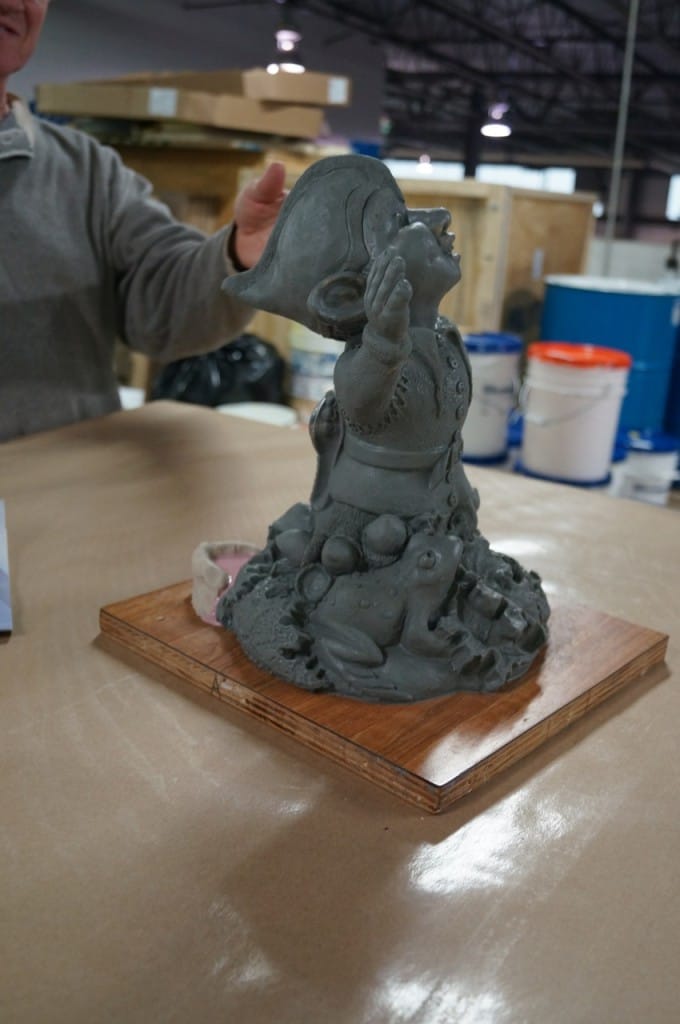

John Cannon of The Whimsical Gardens brought his clay sculpture to our facility to make a mold of the figure and then reproduce it in plastic on a rotational casting machine. The detailed sculpture is pictured below from different angles.

This article details the steps that we took throughout the mold making and casting process:

Step 1: Select a Mold Making Method & Mold Rubber
Step 2: Construct Mold Box & Prepare Sculpture
Step 3: Measure, Mix & Pour Silicone Mold Rubber
Step 4: Demold
Step 5: Cut the Mold
Step 6: Rotational Casting

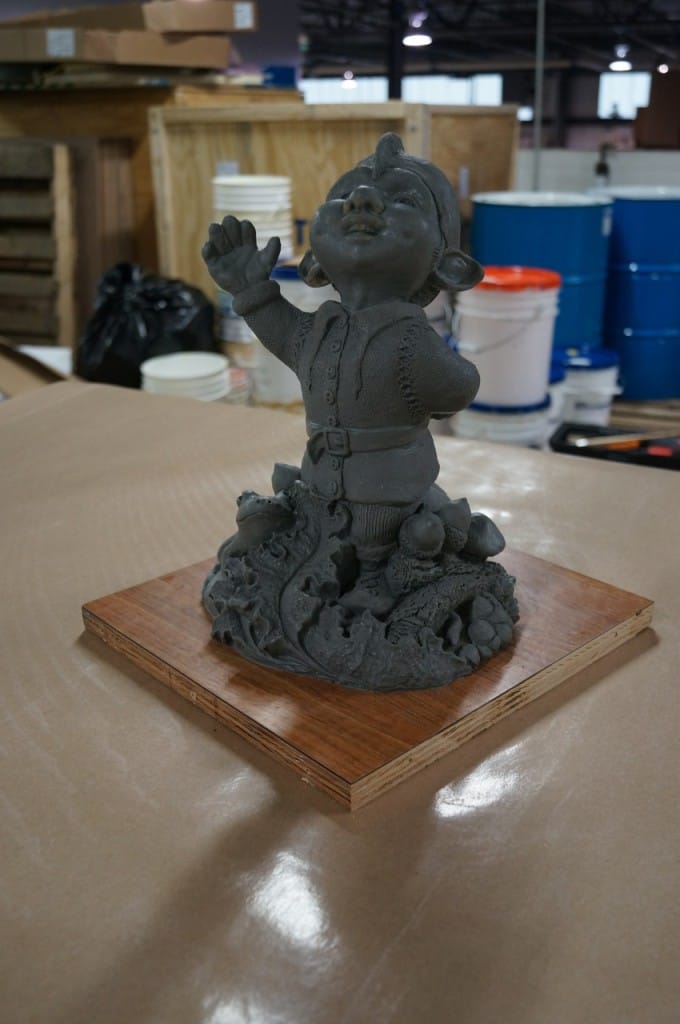

ClaySculpture_MoldMaking







ClaySculpture_SideView







ClaySculpture_Detail_MoldMaking







ClaySculpture_BackView_MoldMaking

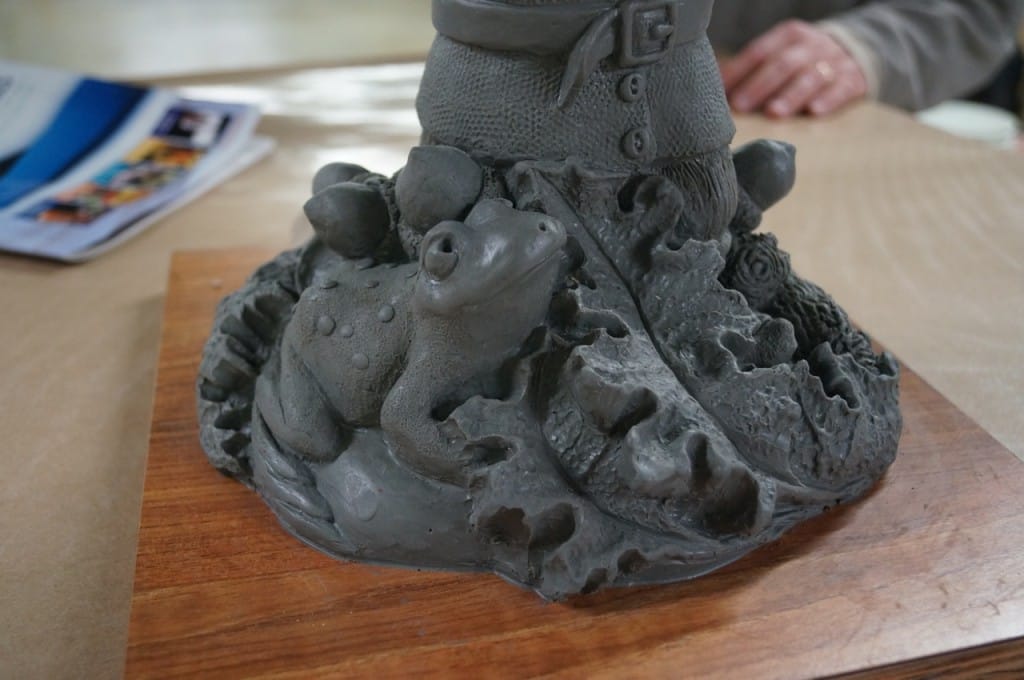

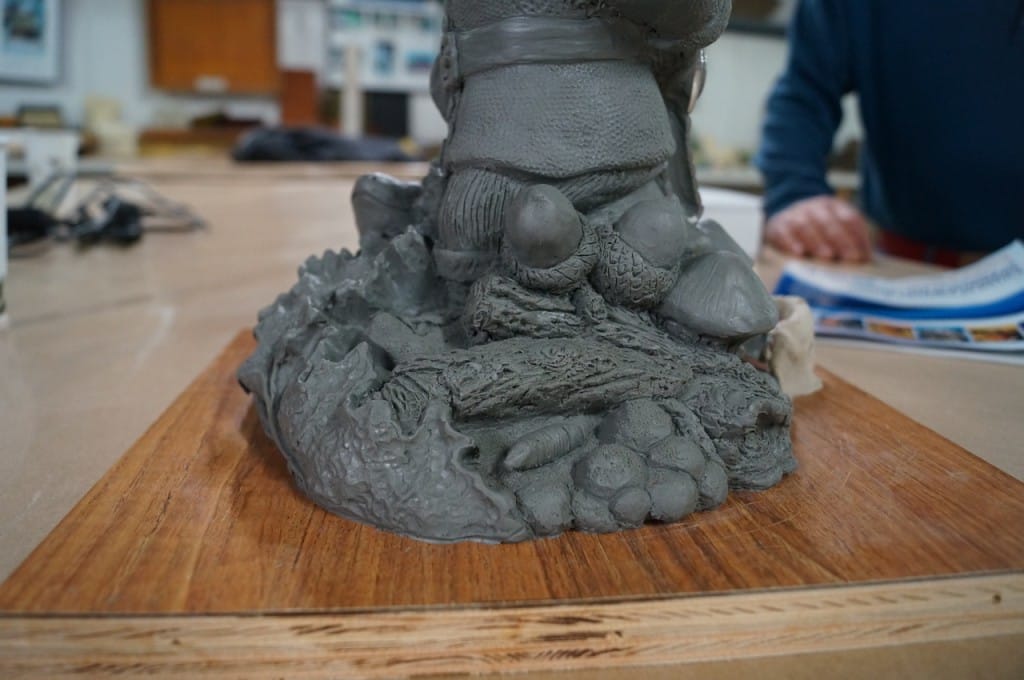

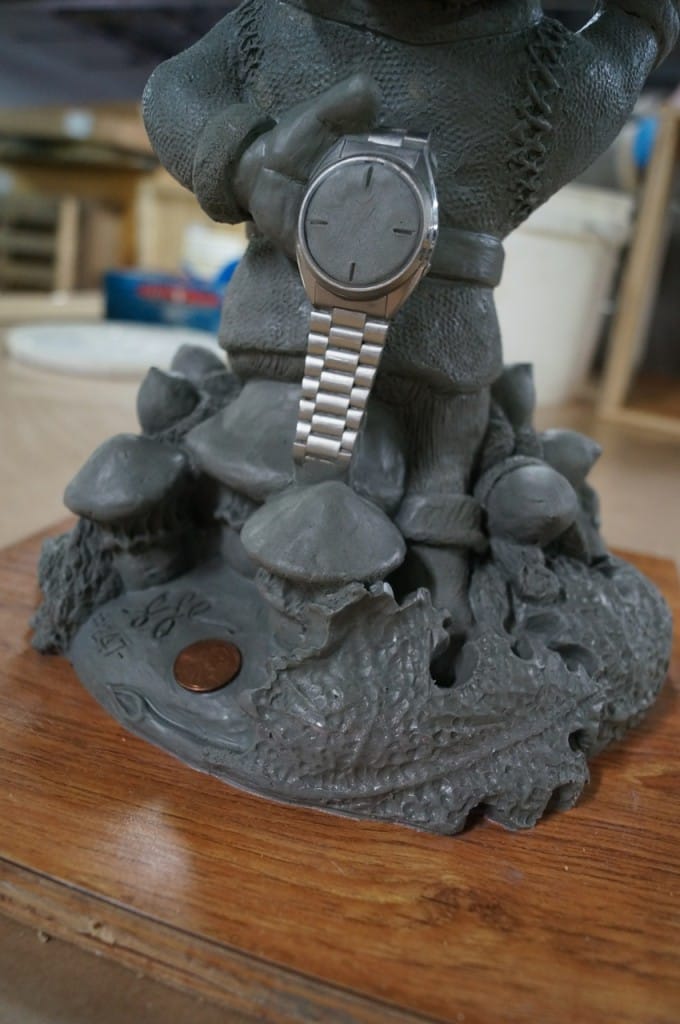

ClaySculpture_BaseDetail_MoldMaking



Step 1: Select a Mold Making Method & Mold Rubber

Mold Making Method

For this sculpture, we select the “poured block mold” method.

Here are the reasons that we are eliminating other methods:

Brush-on Mold: We are concerned that air bubbles may form in the intricate details on the base of the sculpture. Also, brush-on molds tend to have thick and thin spots – thin spots end up being weak points in the mold.

Poured Blanket Mold: One of the steps in the poured blanket mold process is to form a layer of clay on top of the original model (review a poured blanket mold tutorial here). This step would most likely deform the clay original.

Based on the shape of the sculpture, we also know that the mold will require a cut in order to remove the original sculpture and subsequent castings.



Mold Rubber

For this particular project, we also know that we want to use a silicone mold rubber because it does not require release agent when casting polyurethane resin. Release agent can be difficult to apply in intricate areas and it may be difficult to remove from the casting. Residual release agent can prevent paint from sticking to castings.



Platinum-Cured vs. Tin-Cured Silicone Rubbers

Polytek silicone falls into two general categories: platinum-cured and tin-cured. Basic comparisons between the two options are in the table below:

Rubber Type Advantages Disadvantages Casting Materials Methods
Platinum-Cured Silicone Mold Rubbers No shrink on cure, cured rubber has long storage life Liquid rubber can suffer from cure inhibition by some materials (e.g., sulfur clay, tin silicones, Bondo, some 3D-printed plastics, latex rubber). Most materials, especially resins, foams and some low-melt metals. Pour, Brush, Spray.
Tin-Cured Silicone Mold Rubbers No cure inhibition, slightly less expensive than platinum-cured systems Shrinks on cure (~1%), shorter library life (2-5 yrs.) than platinum-cured systems. Most materials, especially resins, foams and some low-melt metals. Can inhibit polyurethane rubber, platinum-cured silicone, and 14-Series Poly-Optic Resin castings. Pour, Brush, Spray.



Platinum-cured silicone rubbers have advantages compared to tin-cured silicone rubbers (e.g., no shrink on cure, longer library life), but can suffer from cure inhibition when exposed to certain materials. Sulfur, for instance, is a known inhibitor and is present in some modeling clays.

We are unsure if John’s sculpture contains sulfur, so we perform a small test cure.

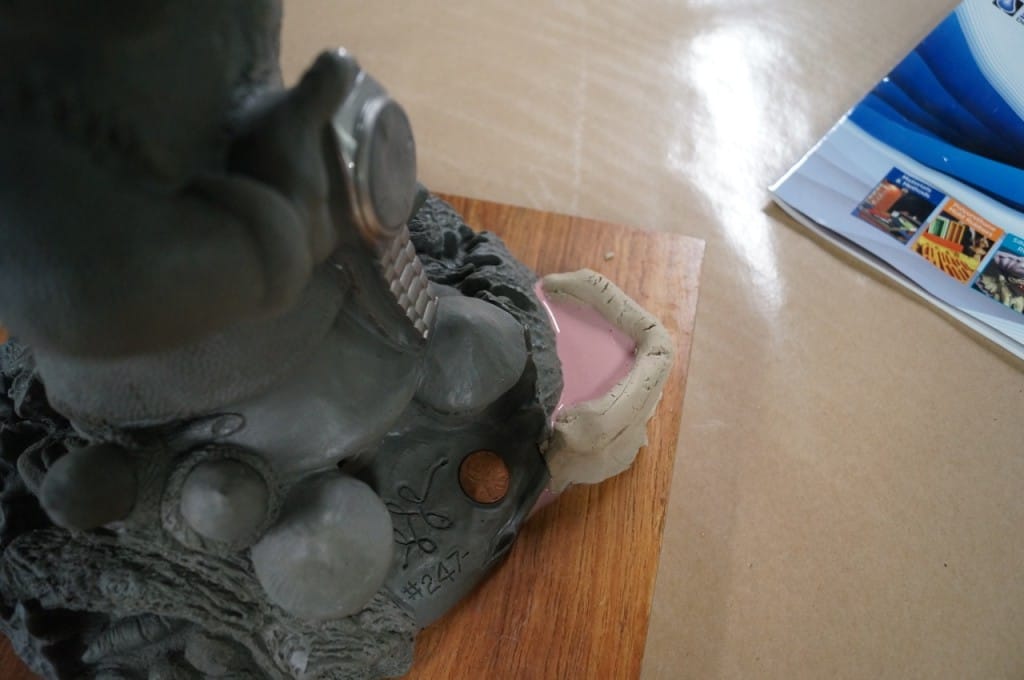

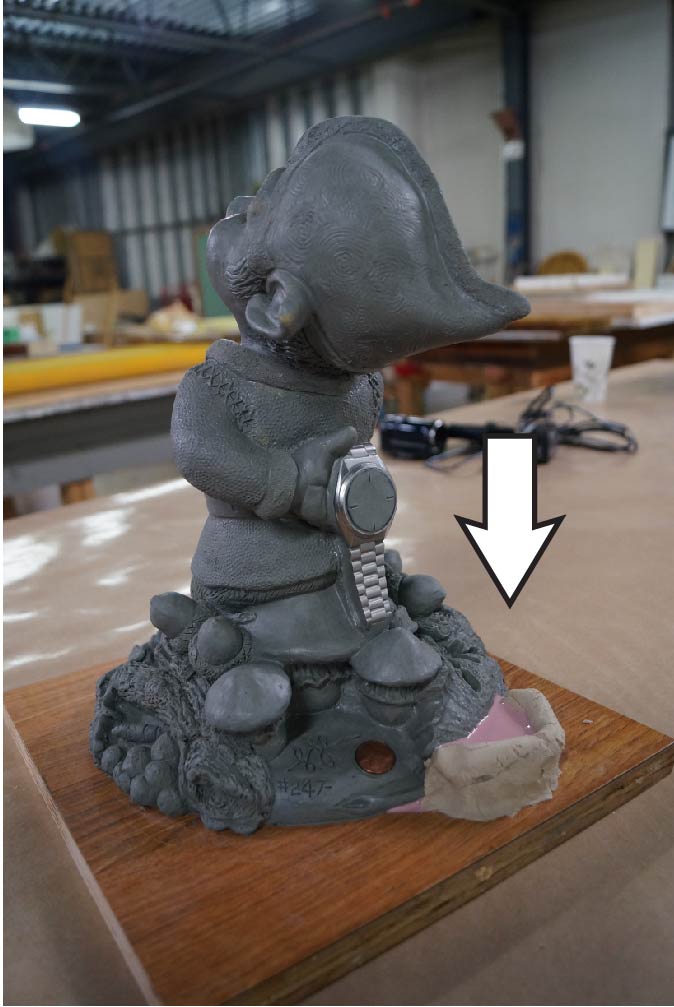

To do the test, we mix and pour a fast-setting platinum silicone rubber (PlatSil® 71-10) into a clay containment area against a small section on the backside of the sculpture.



Platinum Silicone Test Cure-01







TestCureonSculpture

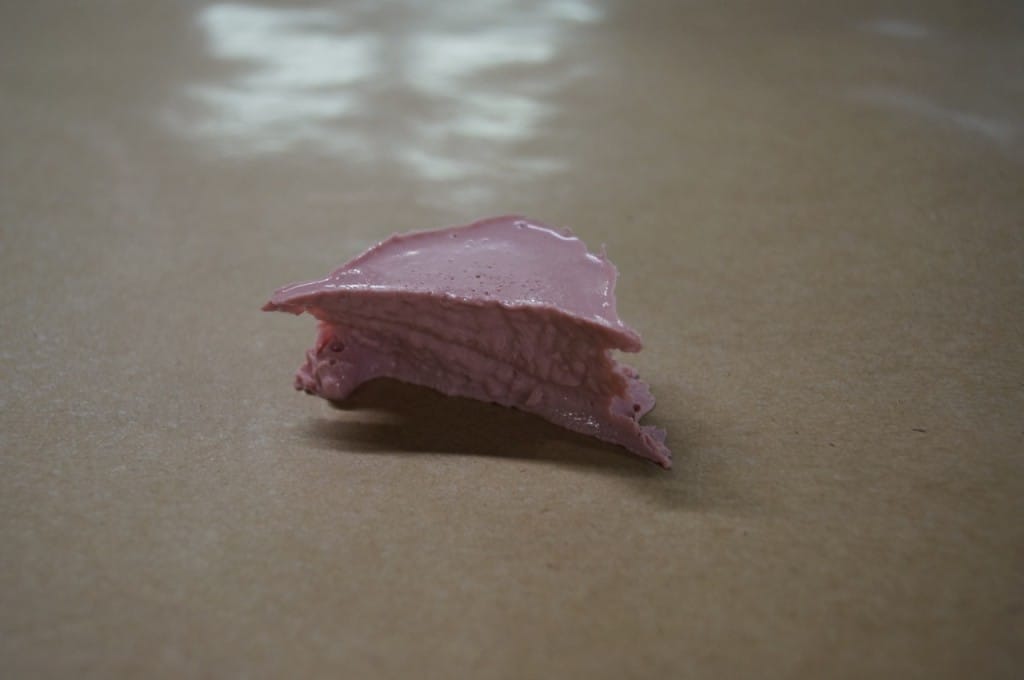

After 30 minutes, we remove the silicone rubber to determine if it has cured properly. We find that the rubber that touched the sculpture remained gummy while the sides of the rubber exposed to air and clay cured properly. This indicates that there is a contaminate within or on the clay that would prevent any platinum-cured silicone rubber from curing properly.





SiliconeTestCure_Clay

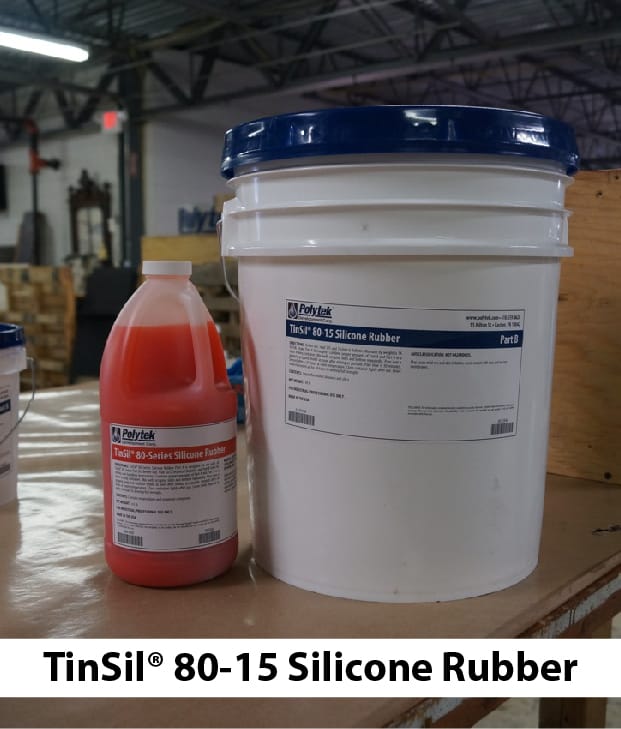

Based on these findings, we select a tin-cured silicone rubber as the mold material:  TinSil® 80-15 Silicone Rubber. We choose a soft silicone (Shore A15) due to the deep undercuts on the sculpture. A harder rubber could be more difficult to remove without damage.







TinSil 80-15 Silicone Mold Rubber









TinSil 80-15 Silicone Rubber: Specifications



Hardness: Shore A15
Mix Ratio: 1A:10B
Pour Time: 30 Minutes
Mixed Viscosity: 12,000 cP
Demold Time: 24 Hours
Cured Color: Peach
Specific Volume: 25.3 in³/lb



Step 2: Construct Mold Box & Prepare Sculpture

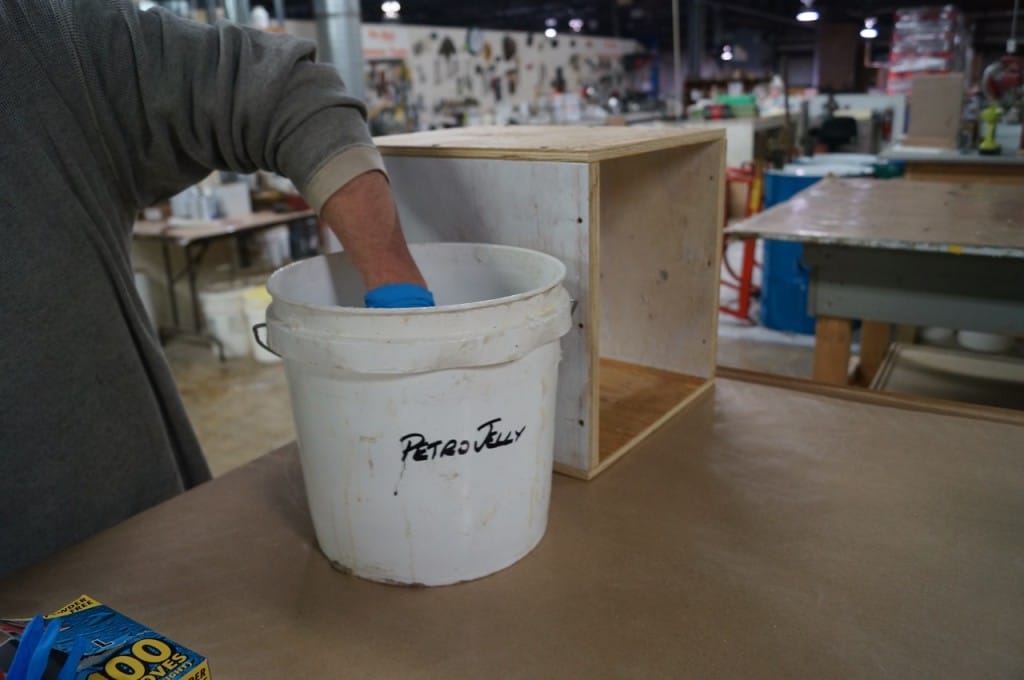

To begin, a plywood mold box is constructed at the proper dimensions (i.e., at least 1″ beyond the sculpture in all directions) and then sealed with petroleum jelly.



NOTE: It is a good idea to taper the inside of the mold box so the mold can be removed more easily when the mold box is turned upside-down.



PetroleumJelly_SealMoldBox






SealMoldBox_PetroleumJelly

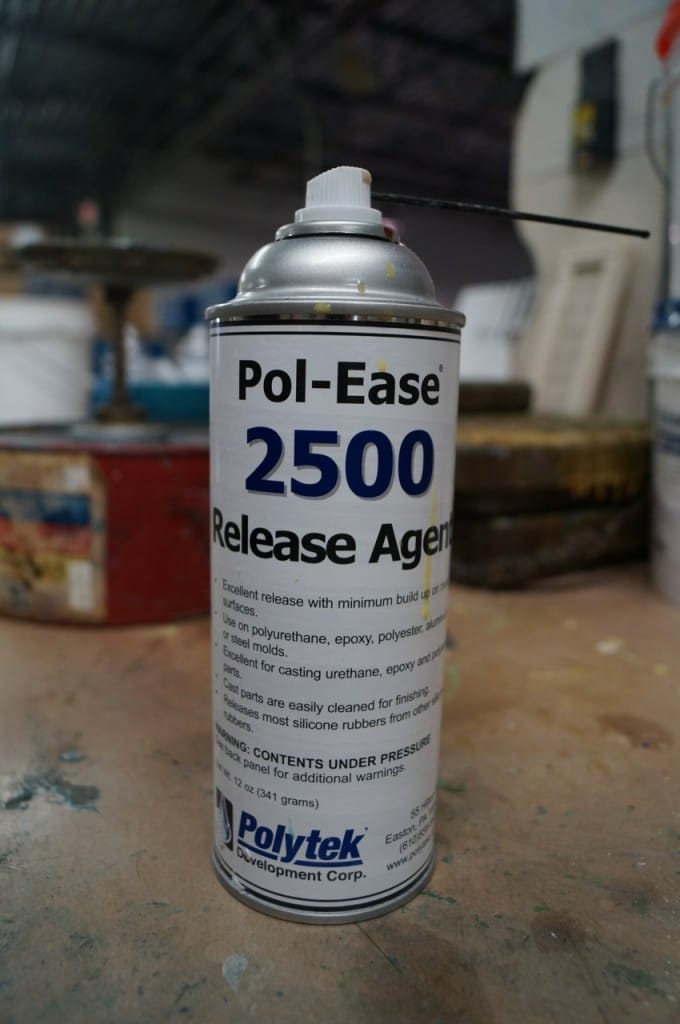

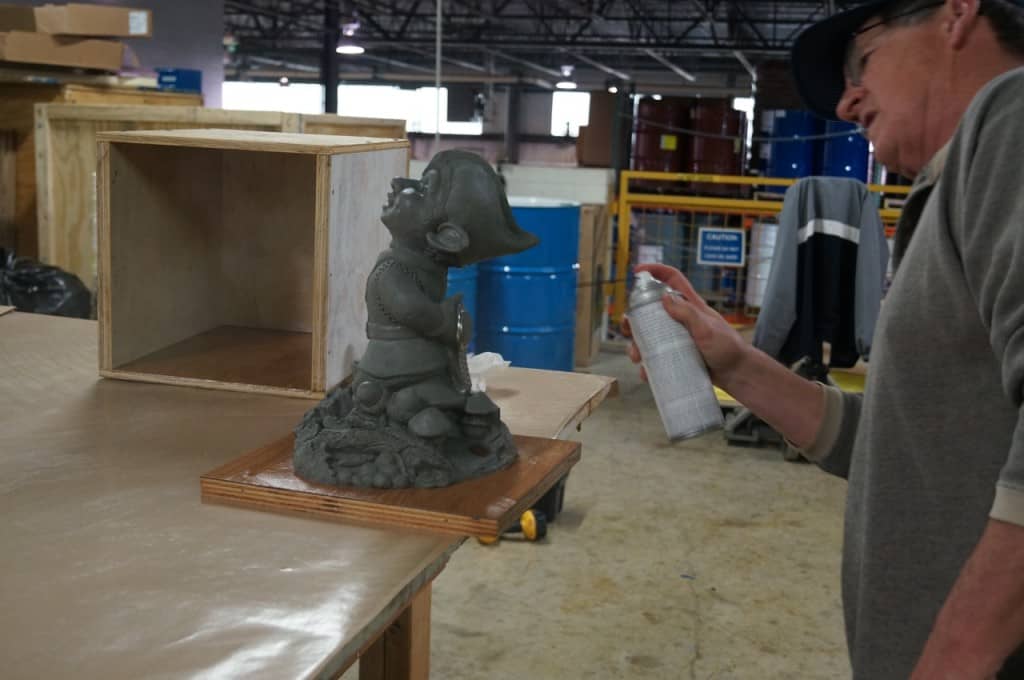

Pol-Ease® 2500 Release Agent is then applied to the clay sculpture.





NOTE: Use Pol-Ease® 2300 if making a polyurethane rubber mold.



PolEase2500_ReleaseAgent






ApplyPolEase2500_ReleaseAgent

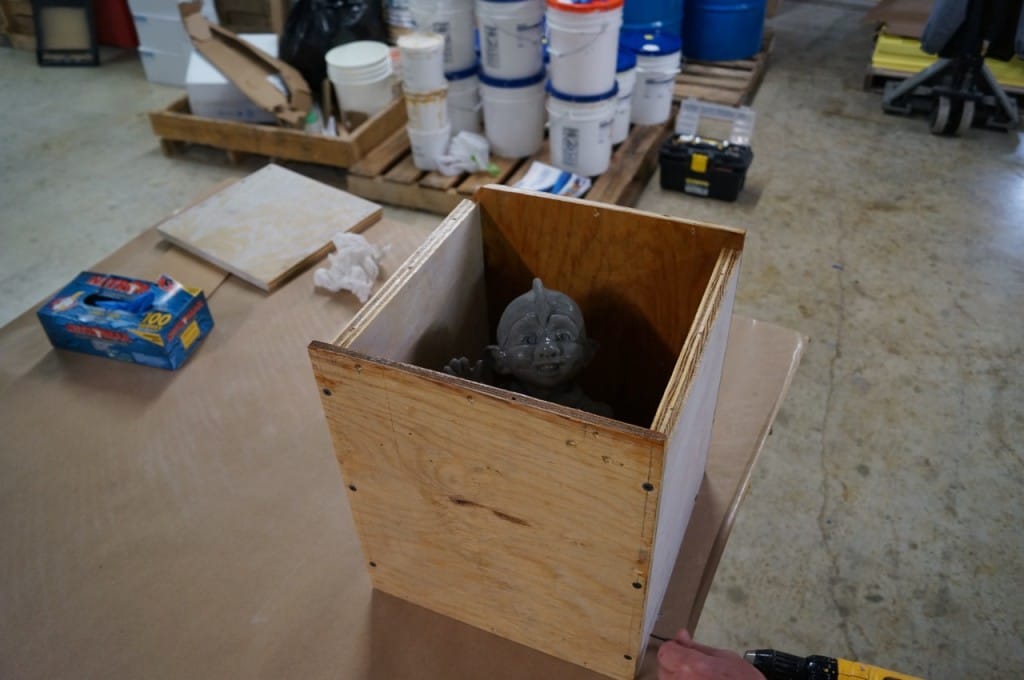

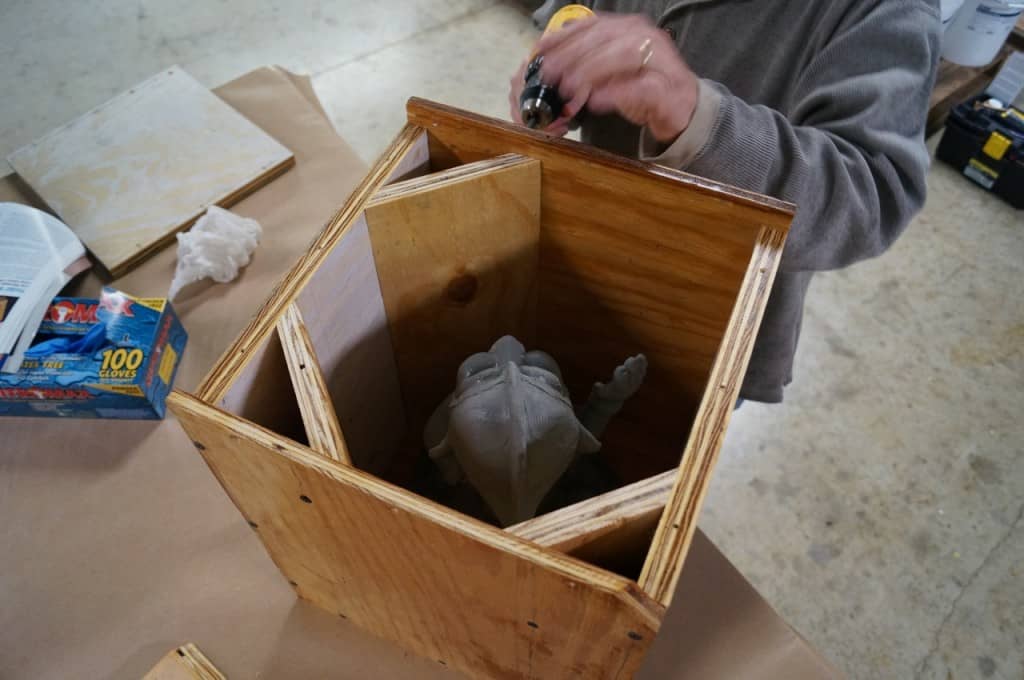

The mold box is placed around the prepared sculpture to verify that the dimensions are suitable.













Put Sculpture in Mold Box



We estimate the amount of rubber needed for the mold with the following calculation:





Volume of Mold Box = ~1,716 in3

Volume of Sculpture = ~84.78 in3

Volume of Mold Box – Volume of Sculpture:  1,716in– 84.78 in3 = 1,631.22 in3

1,631.22 in3 ÷ 23.7 in3/lb (specific volume of TinSil 80-15) = 68.8 lb of TinSil 80-15 Silicone Rubber



Mold Rubber Calculation

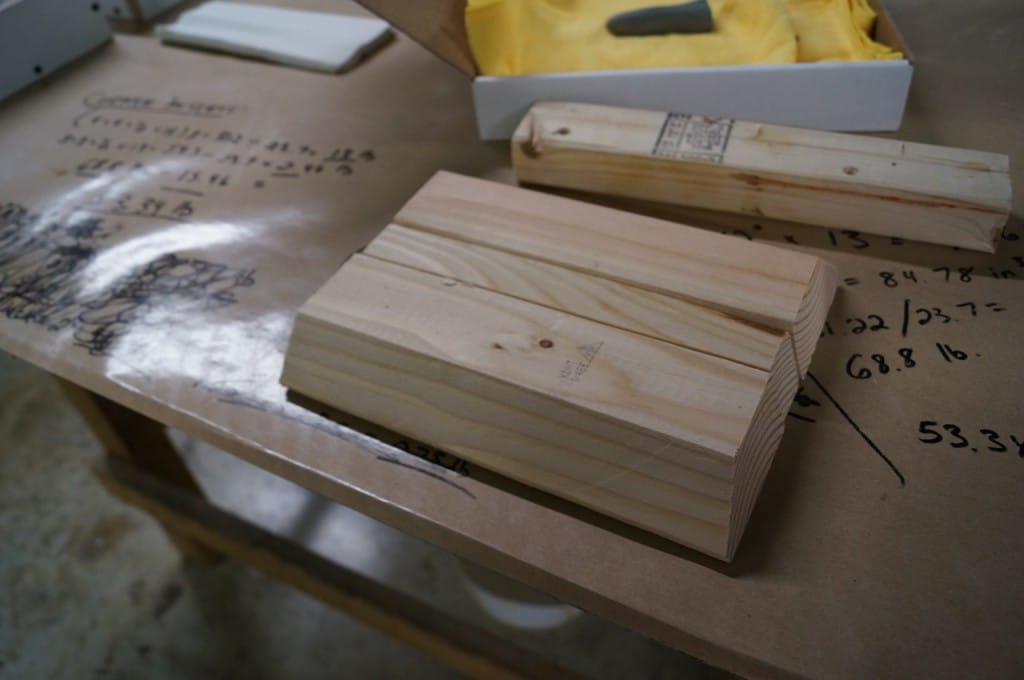

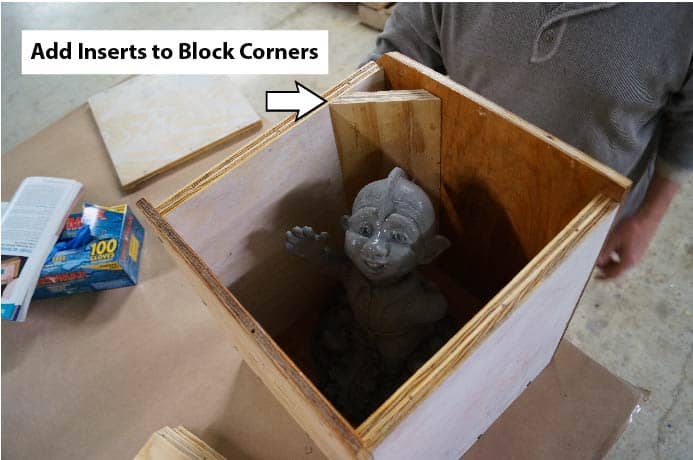

68.8 lb is a large amount of rubber and we realize that there is opportunity to reduce that amount by adding corner inserts and other block-outs.




Add Block-Outs to Mold Box-01













3CornerInserts_MoldBox













Block-Outs_MoldBox

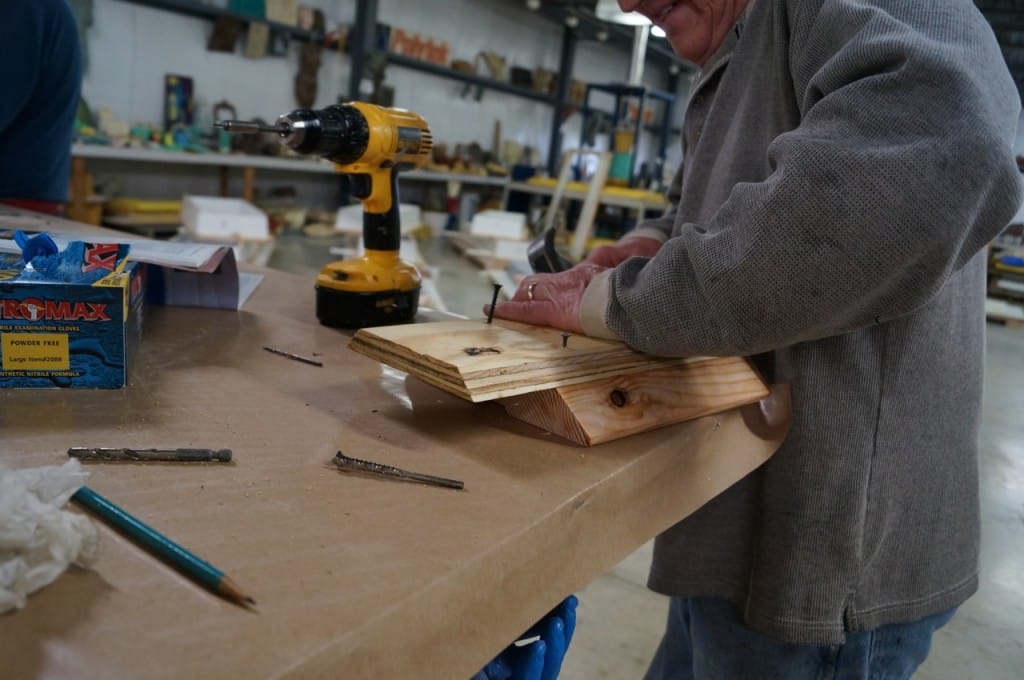

ConstructingBlockOut_MoldBox

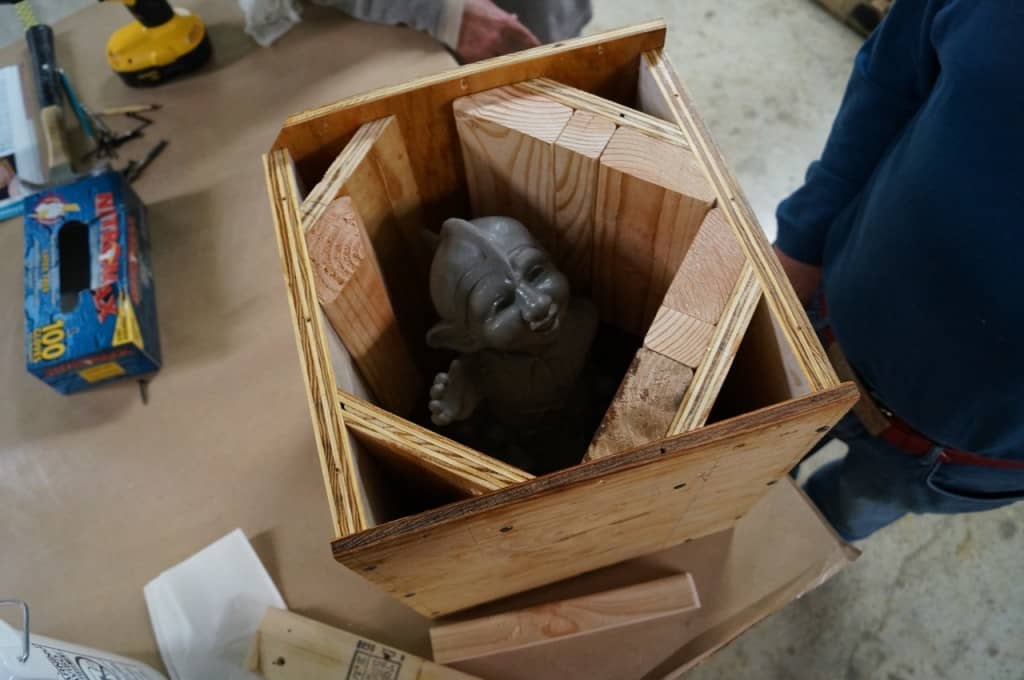

We add a number of block-outs, but still maintain at least a 1″ space between the sculpture and mold box walls/block-outs.













All_Blockouts_Installed_MoldBox

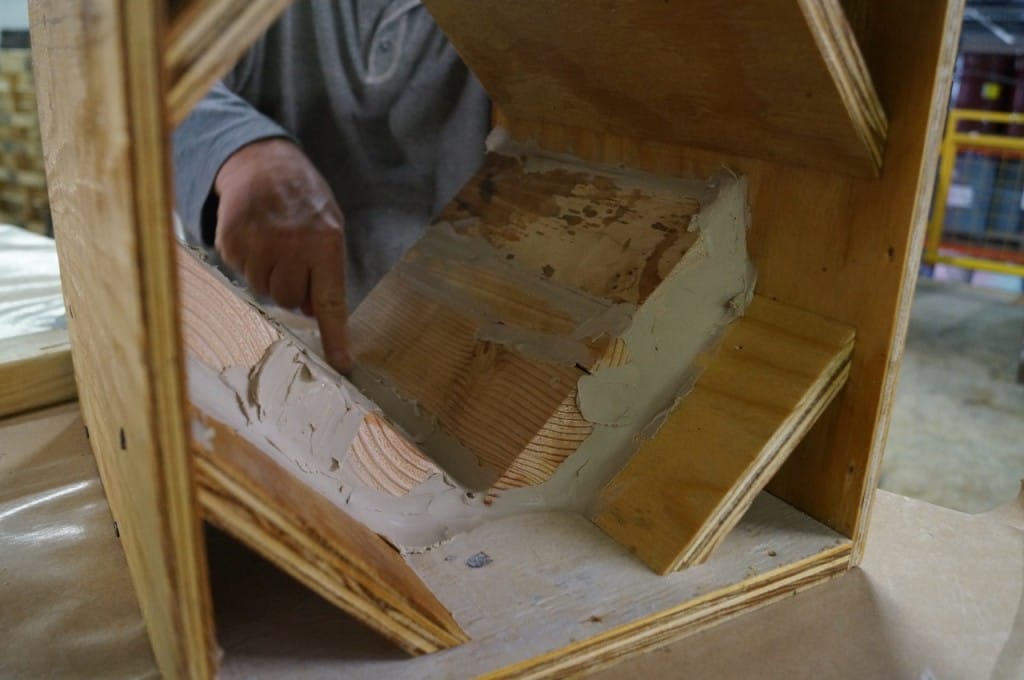

Once all of the block-outs are secured, the mold box is removed to seal the new plywood additions with petroleum jelly and caulk all edges with warmed plasticine clay. Caulking the edges helps to prevent leaking when liquid silicone is poured into the mold box later.

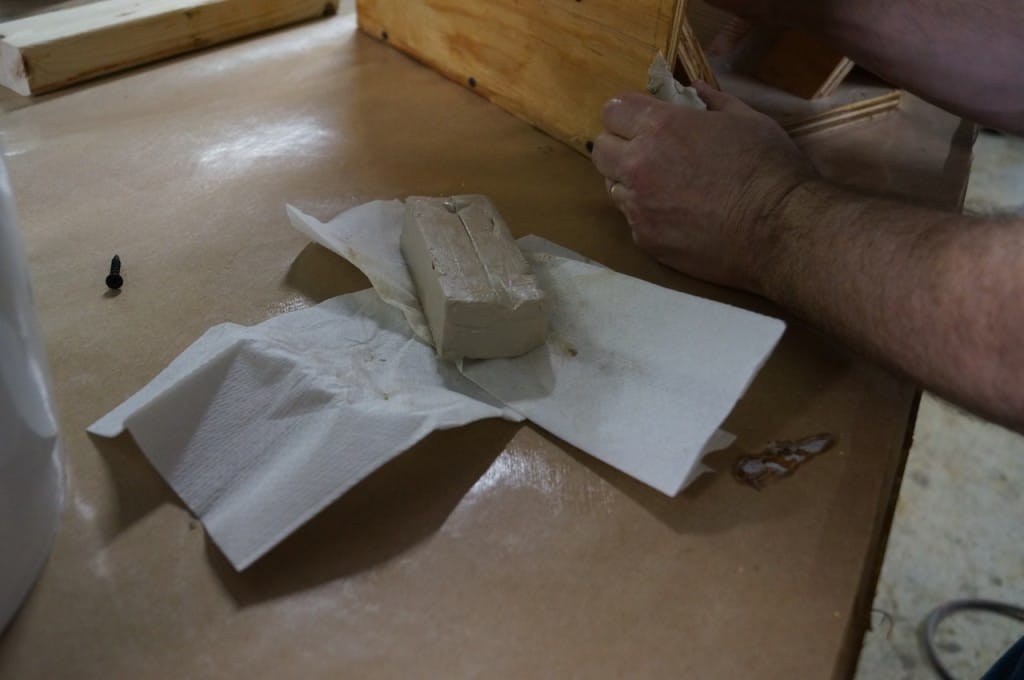

Warmed Plasticine Clay













Seal Edges with Plasticine Clay



The sculpture is placed back into the mold box and then the mold box is secured with screws.






Step 3: Measure, Mix & Pour Silicone Mold Rubber

Based on the new dimensions of the mold box, we determine that approximately 40 lb of TinSil 80-15 Silicone Rubber is needed to make the mold.

As mentioned previously, TinSil 80-15 has a mix ratio of 1A:10B. The components are measured by weight and then mixed thoroughly.

NOTE: Do not attempt to measure products with 1A:10B mix ratios by volume – always measure by weight.

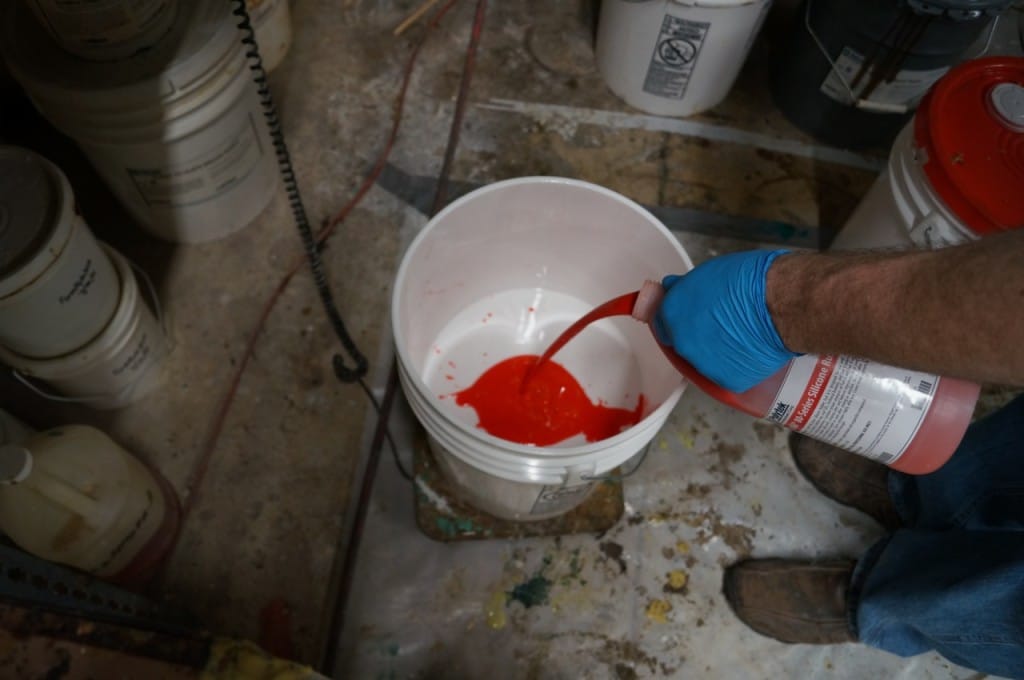

Weigh TinSil 80-15 Silicone Rubber

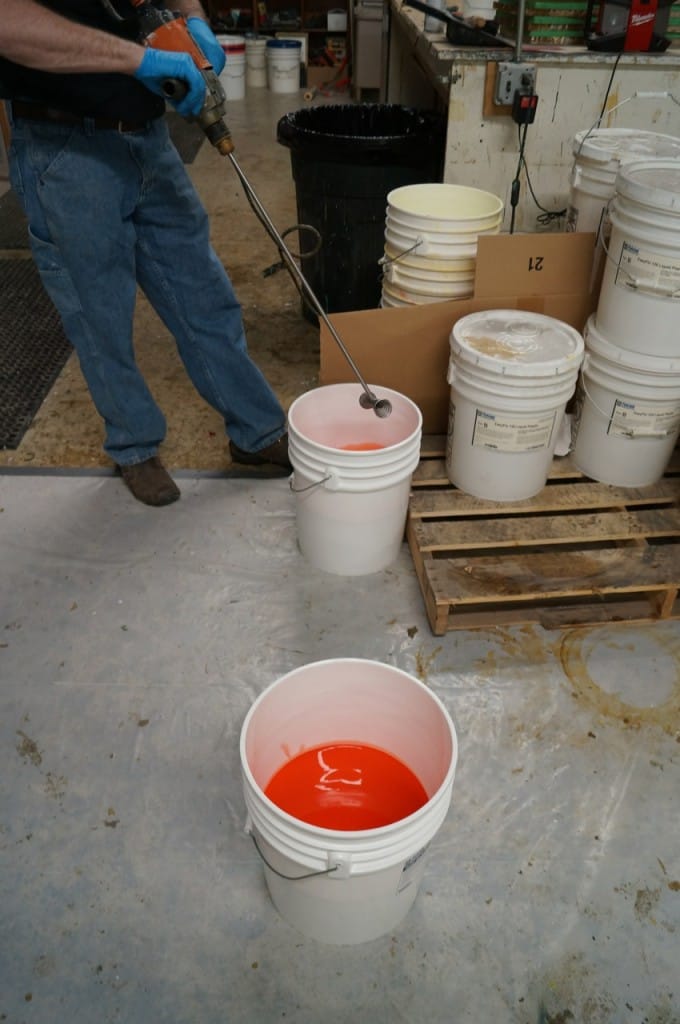

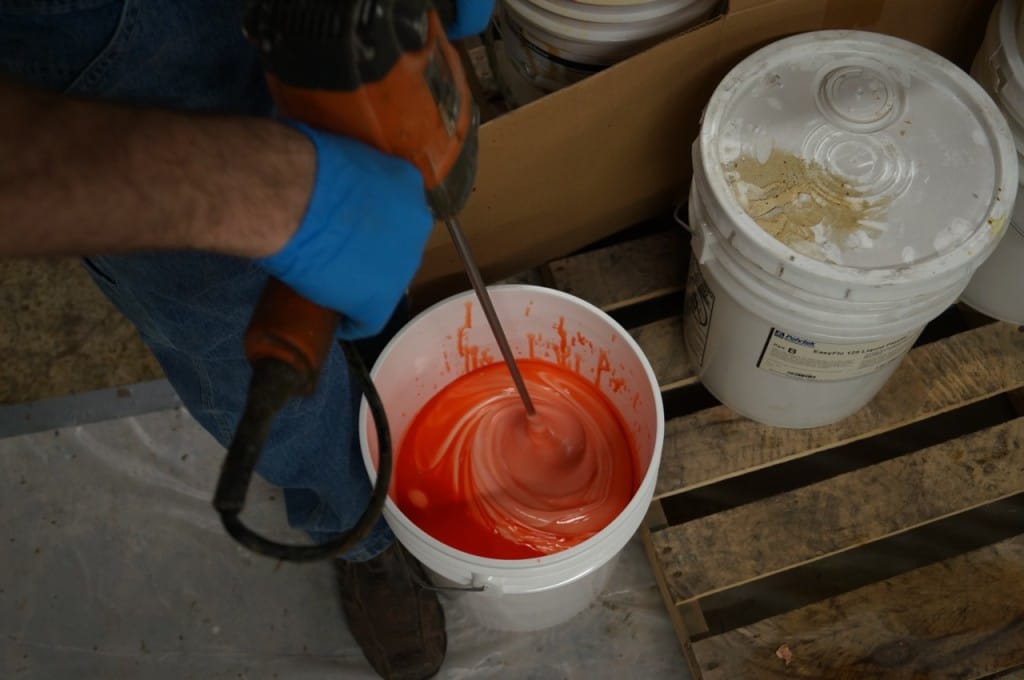

Because of the quantity of rubber needed for this project, we mix two separate batches using a turbo mixer.




Mix with Turbo Mixer

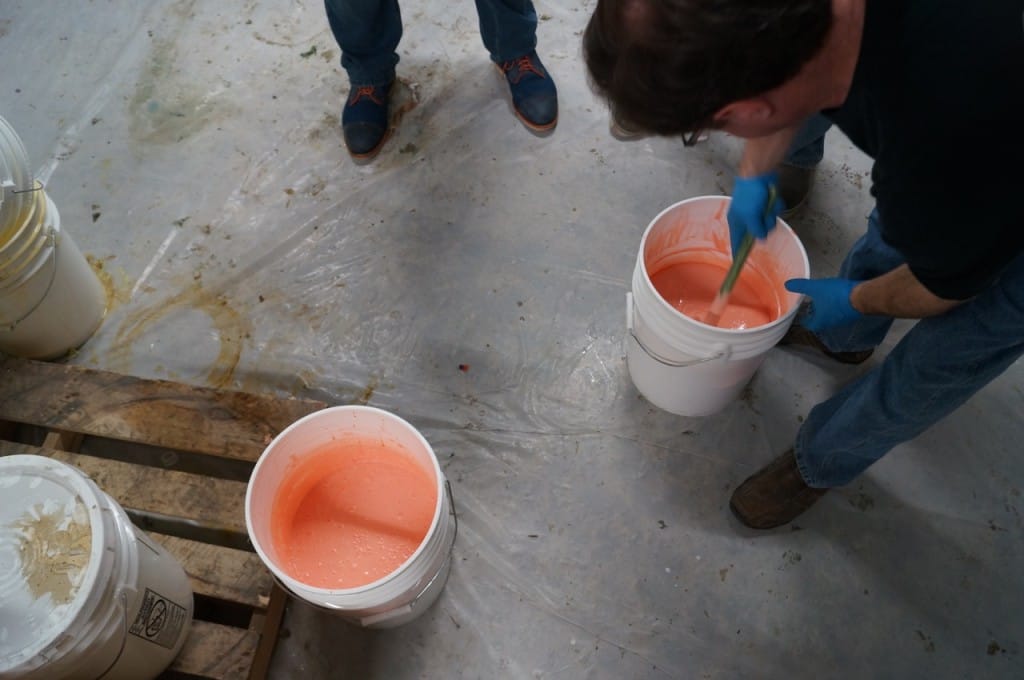

The rubber is mixed until a uniform color is reached.

NOTE: Avoid hitting the sides of the mixing pail with the turbo mixer as this can introduce air into the mixture.

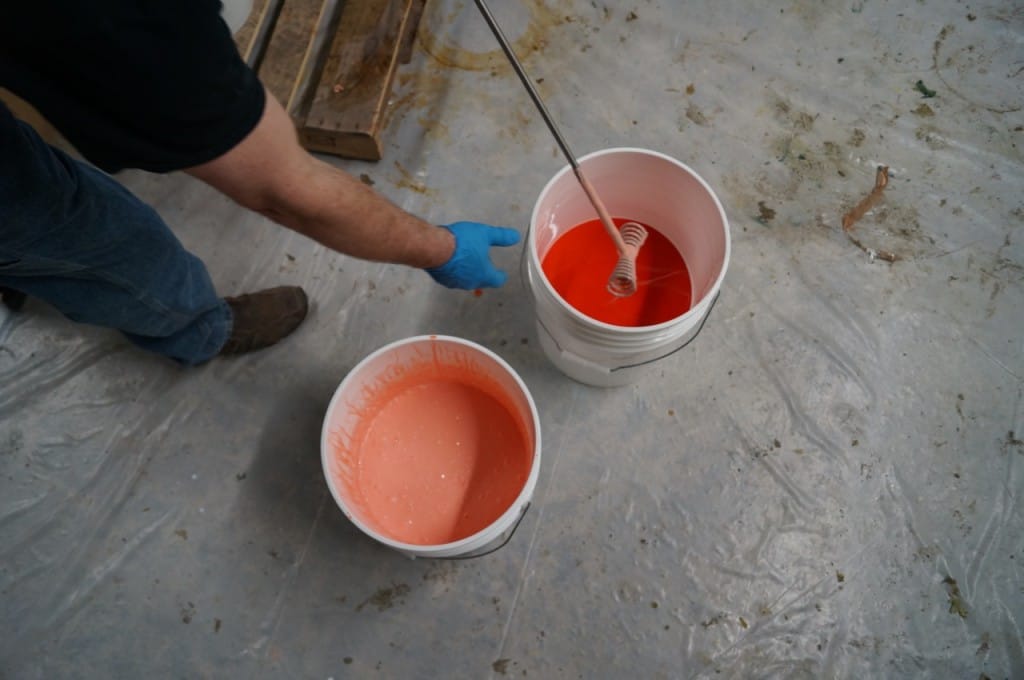

Mixing Silicone Mold Rubber






Mixing Silicone Mold Rubber













Mixing Silicone with Turbo Mixer



The batches are then mixed by hand with a Poly Paddle.

NOTE: It is important to scrape the sides and bottom of the mixing container several times, as this is where unmixed material tends to cling.







Hand Mix Silicone Rubber

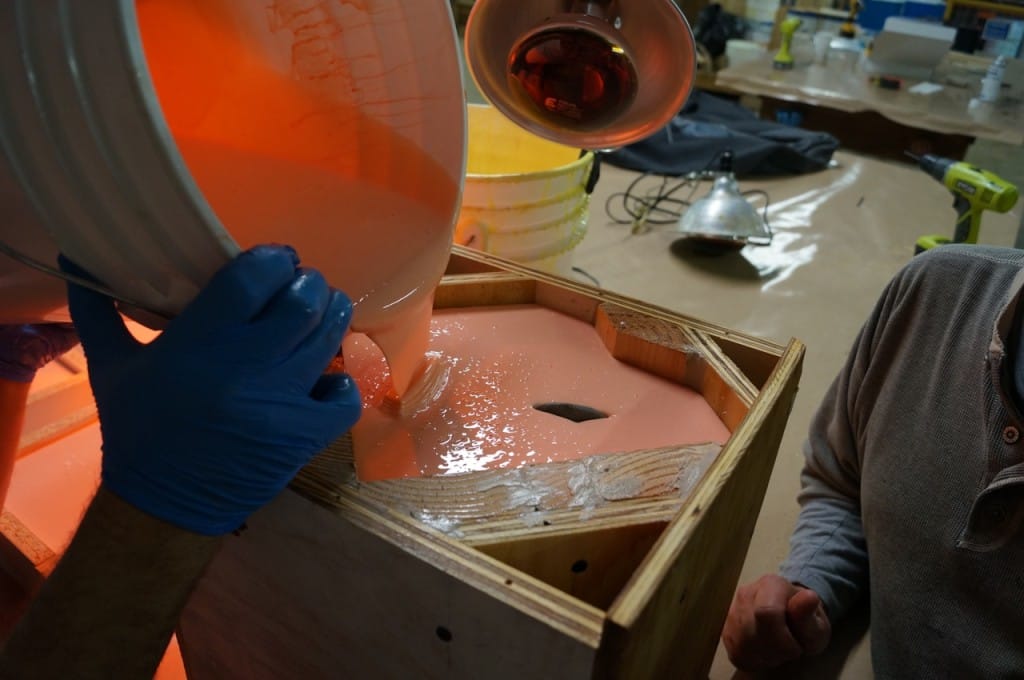

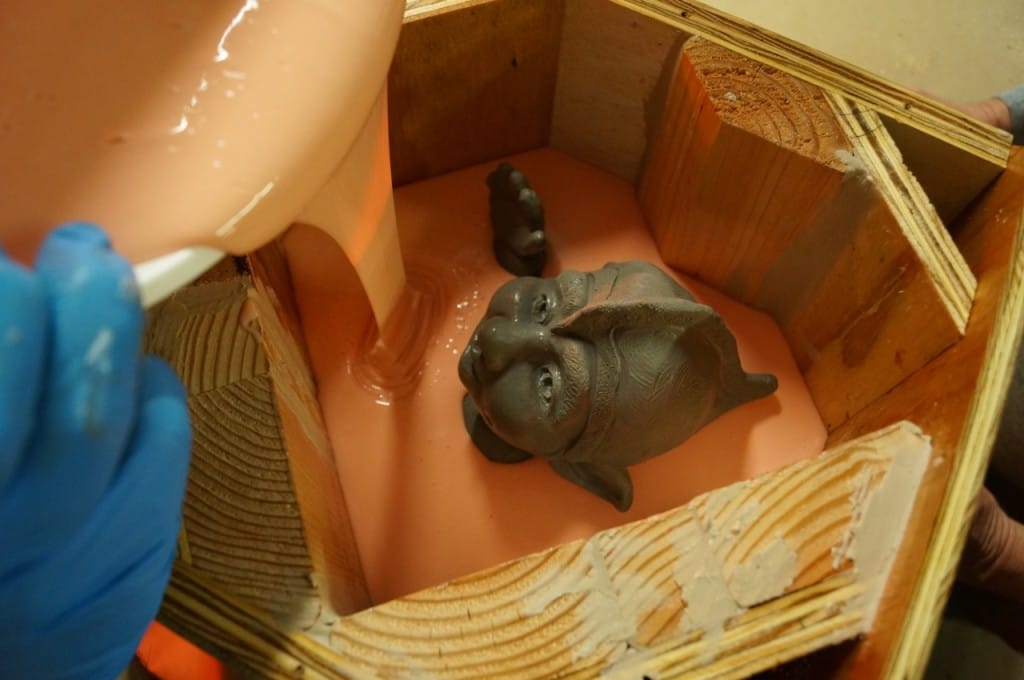

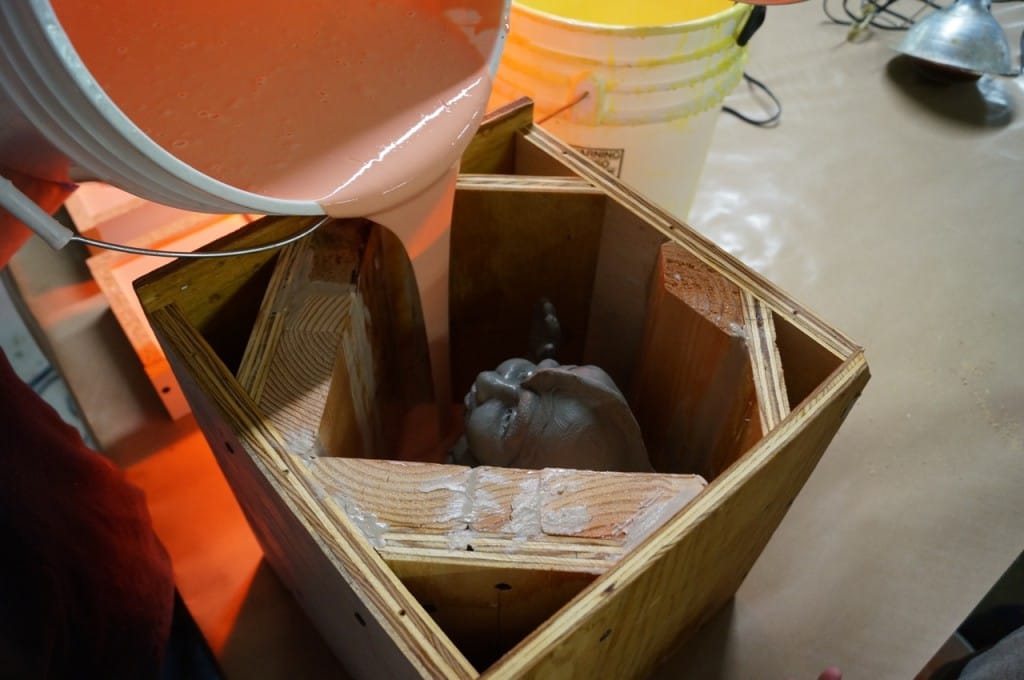

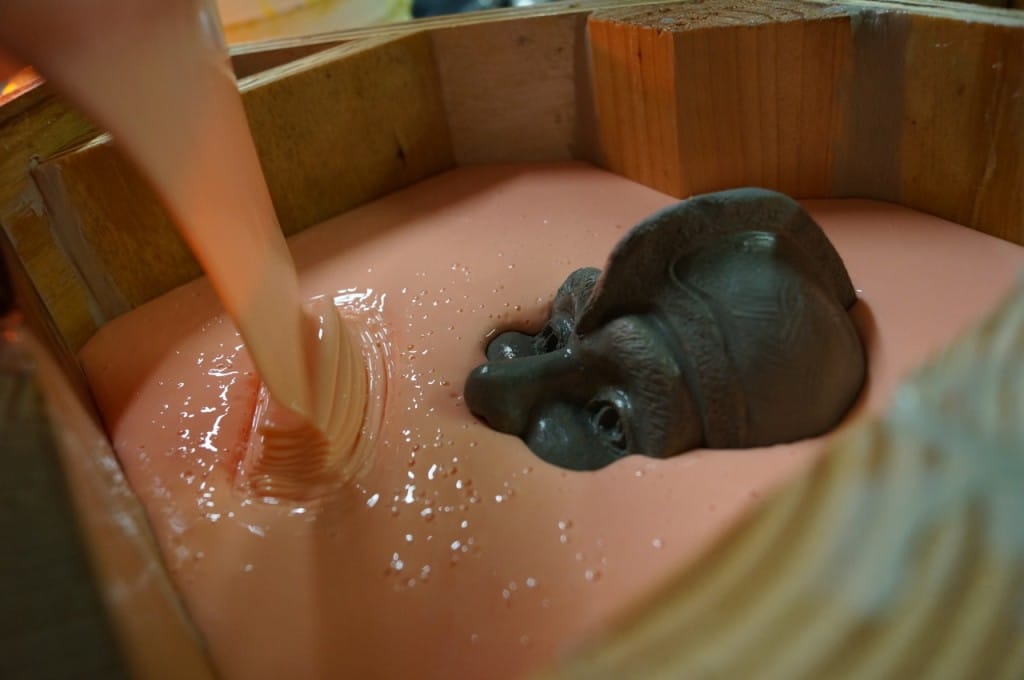

The silicone is poured into the lowest point of the mold box and allowed to rise.




Hand Mix Silicone Rubber













Pour Silicone Mold Rubber













Pour Silicone Mold Rubber













Pour Silicone Mold Rubber



The rubber is poured until it reaches at least 1.0″ above the highest point on the sculpture.













Pour Silicone Mold Rubber Over Model

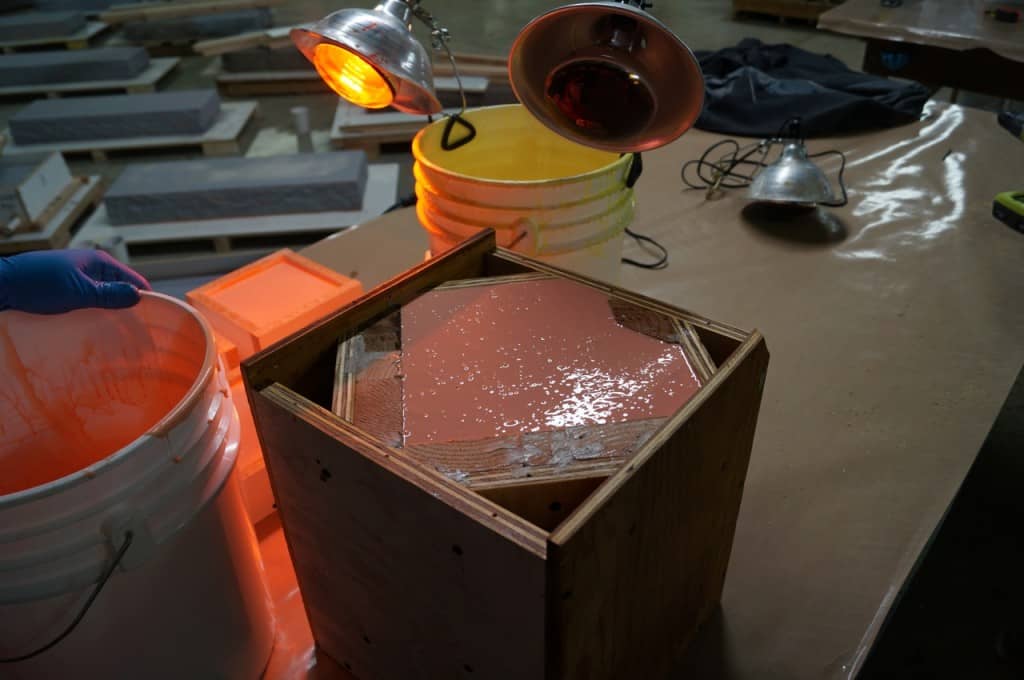

We allow the rubber to cure at room temperature for ~24 hours. Heat lamps can help speed the cure.

NOTE: Demold times vary by product. Check product Technical Bulletins for this information.







Pour 0.5" Over Model






Step 4: Demold

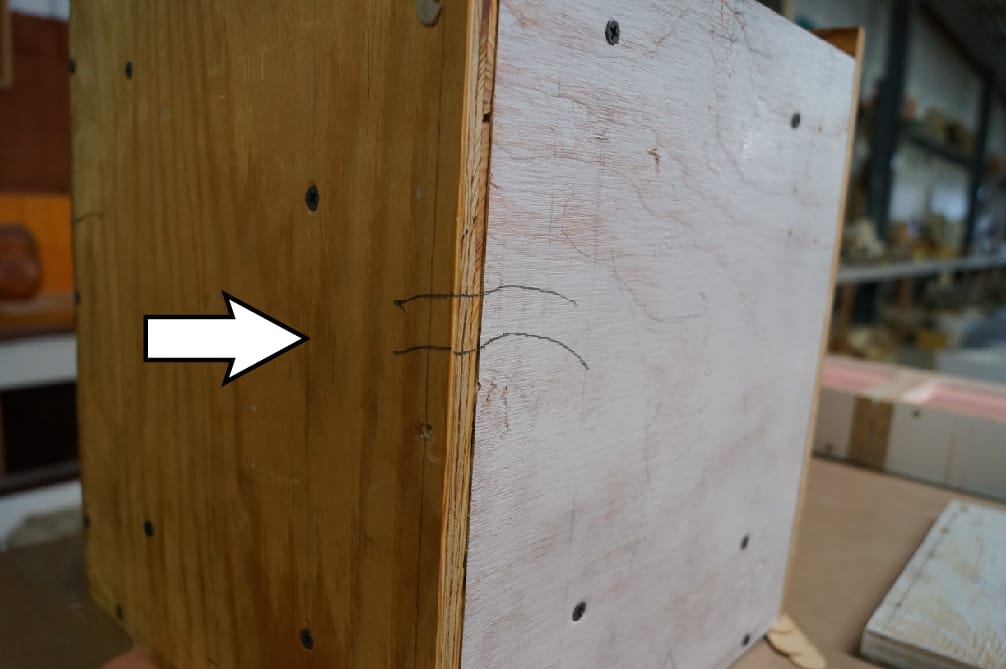

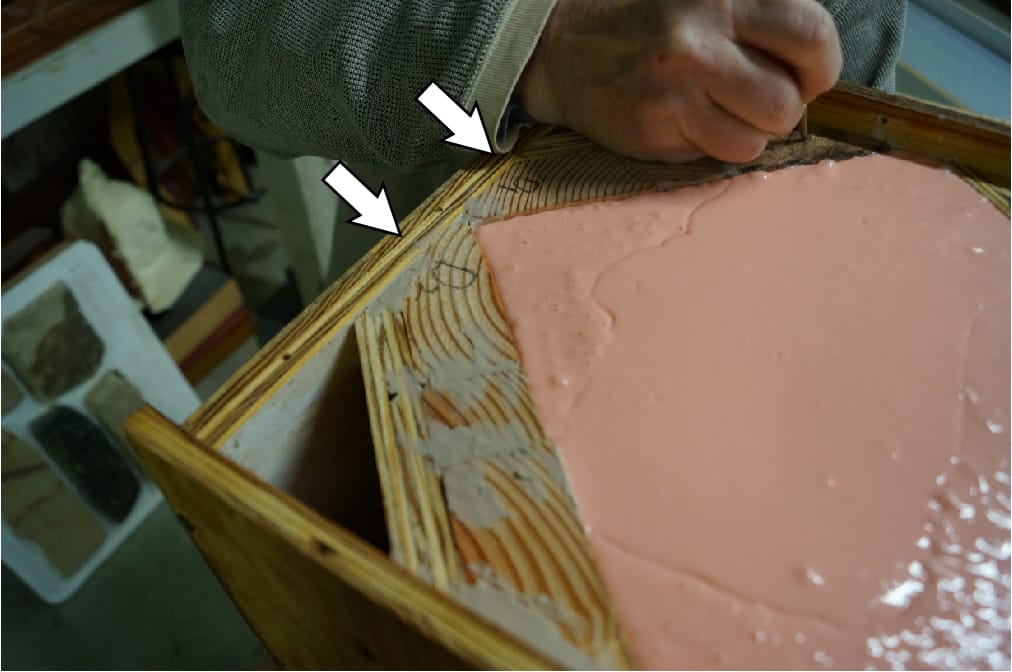

Before demolding, the locations of the mold box walls and block-outs are marked with a pen. This is done so that the mold box can be put back together correctly for casting later.



Mark Locations on Mold Box Walls & Inserts






Mark Mold Box Walls

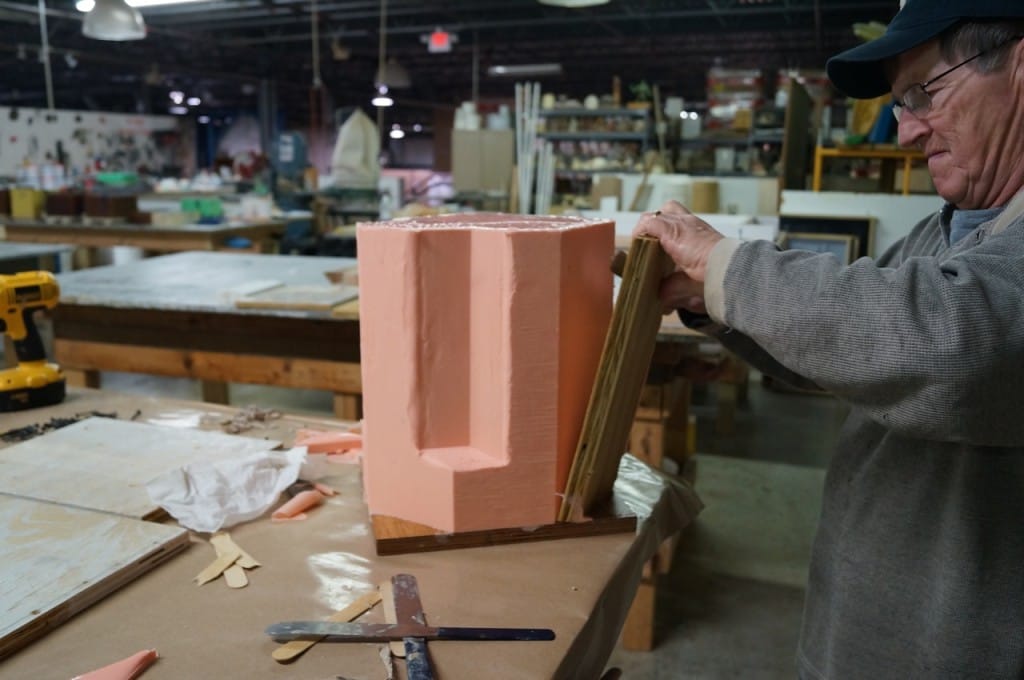

All mold box walls and block-outs are carefully removed.













Remove Mold Box Walls & Inserts













Remove Mold Box Walls & Clay

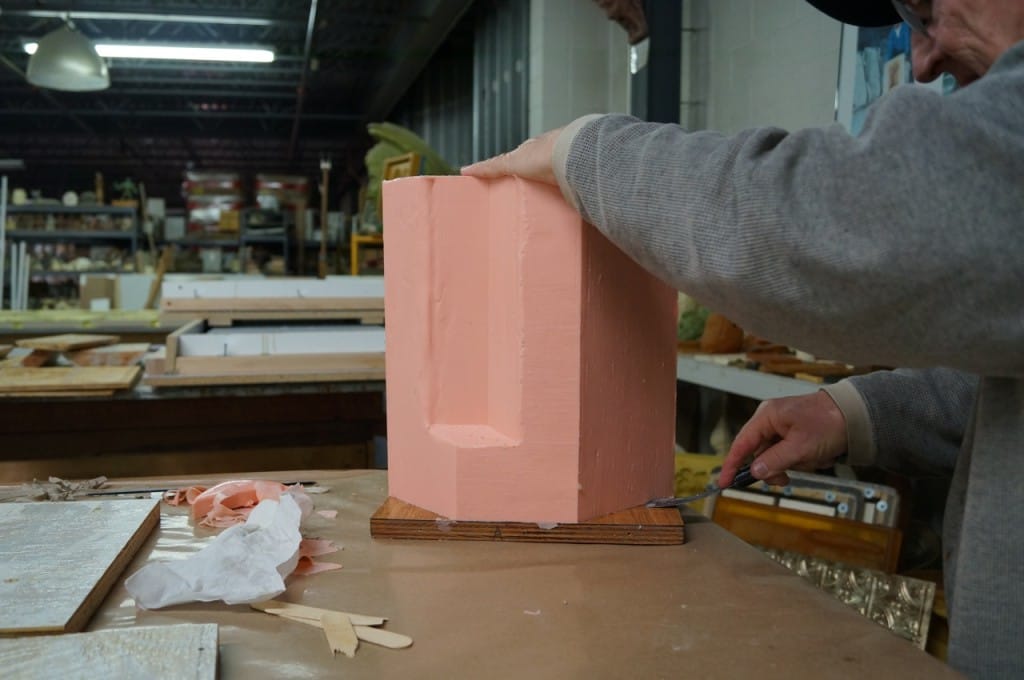

All edges of the mold are loosened from the baseboard with a putty knife before the entire mold is removed.













Loosen Edges from Baseboard

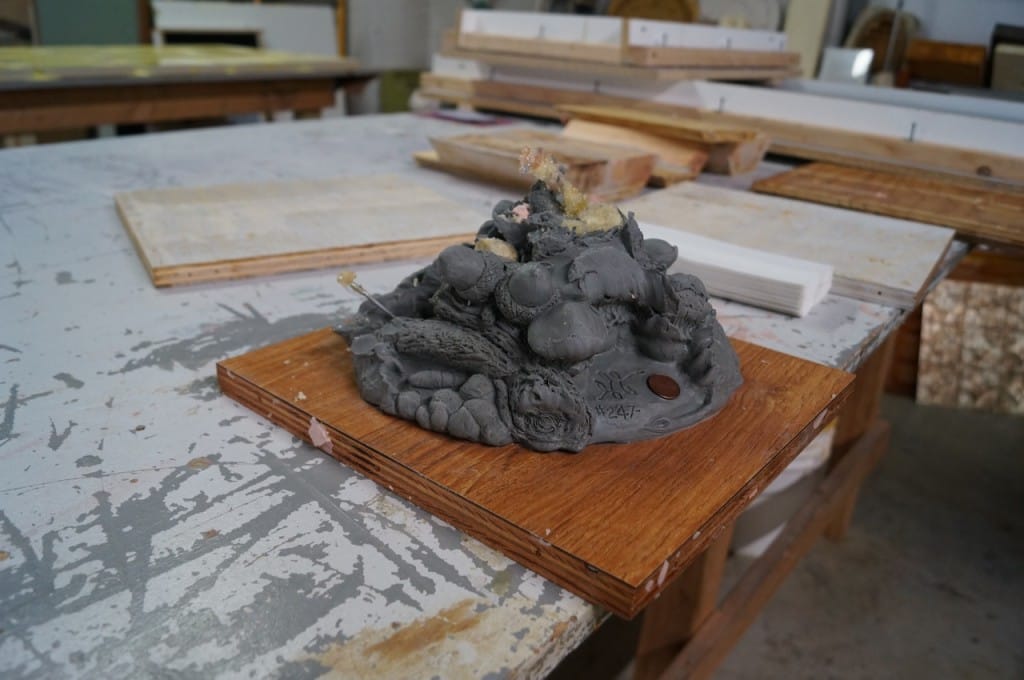

Upon removal of the mold from the baseboard, the sculpture splits in half, leaving the top half in the mold.













Part of Model Removed from Mold








Step 5: Cut the Mold

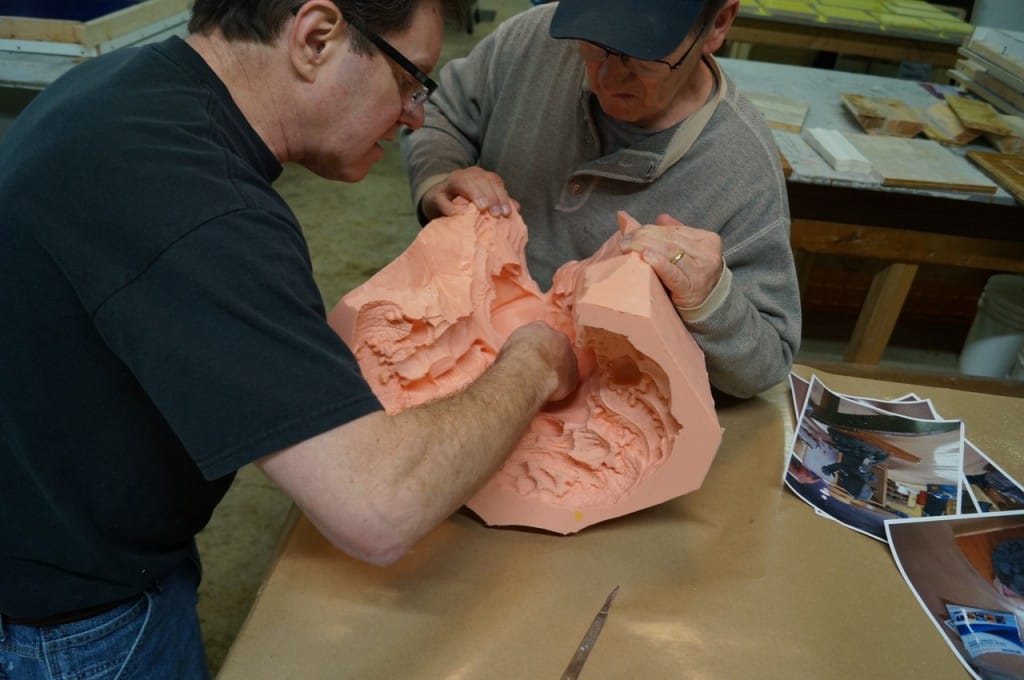

To remove the remainder of the sculpture and subsequent castings, we prepare to make a cut on one side of the mold. Pictures of the sculpture are printed to determine a good location for the cut.

NOTE: If possible, it is best to cut along a line that already exists on the sculpture or in an inconspicuous location (i.e. avoid the face).



Reviewing Photos for Cut

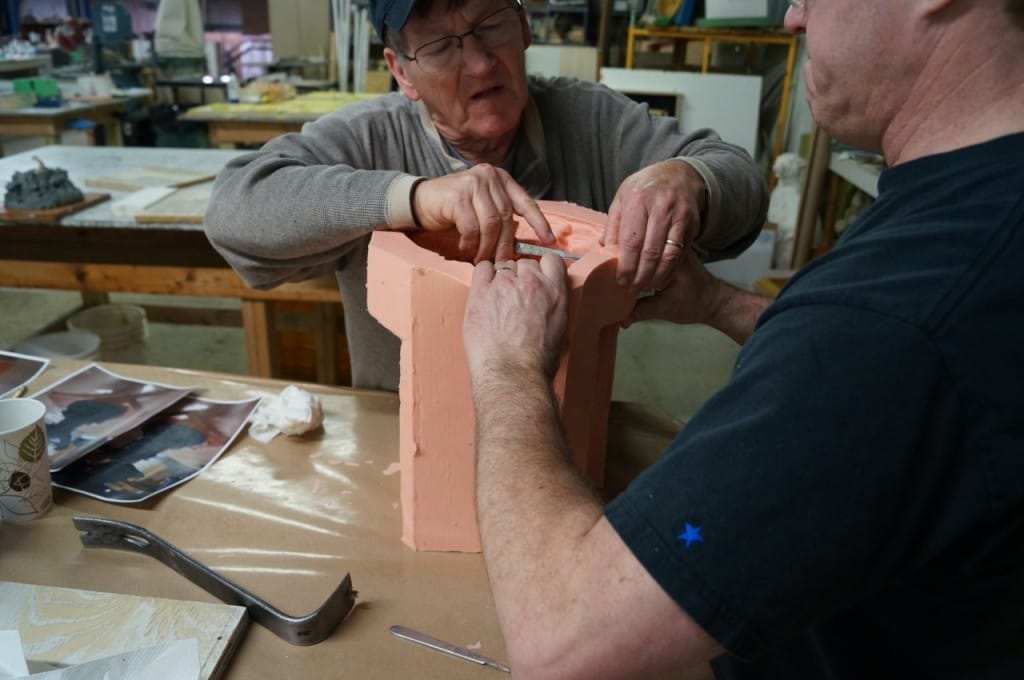

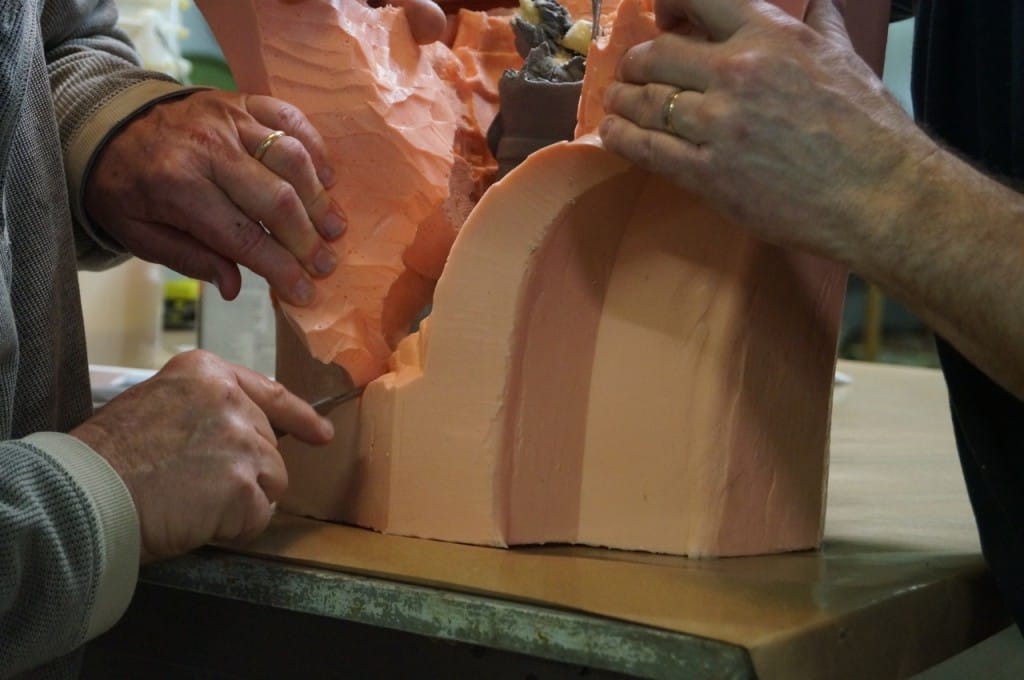

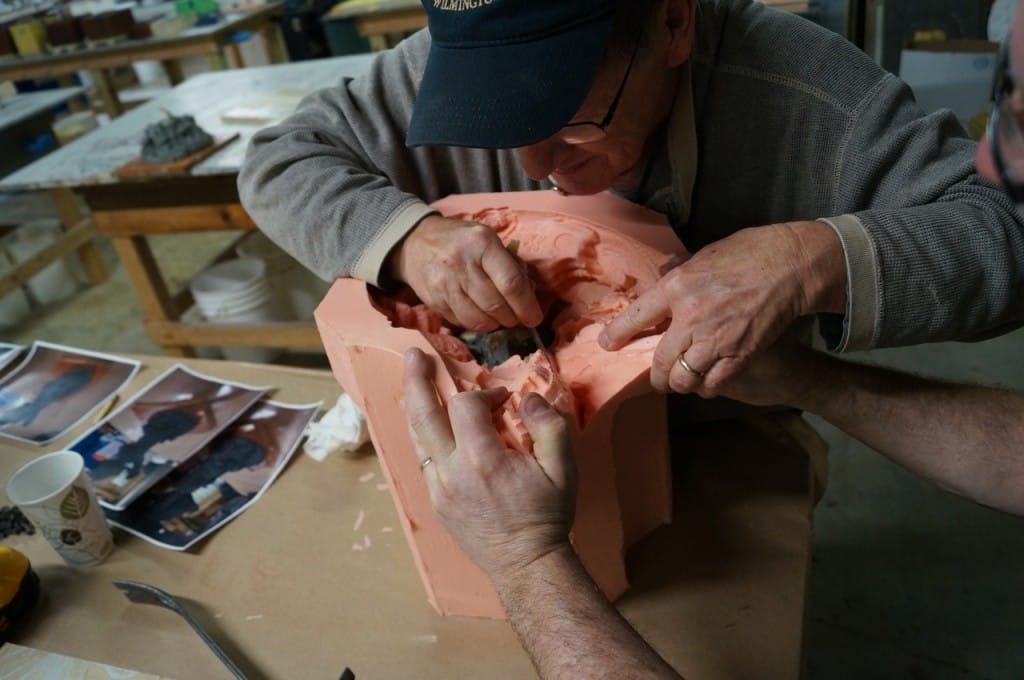

A scalpel is used to make the cut.

NOTE: It is important to create an irregular cut pattern (i.e., tongue and groove or zig-zag cut) so that the two sides align well for casting (for general information on cutting rubber molds, visit this article).





Cutting Silicone Mold with Scalpel






Cutting Silicone Mold with Scalpel













Cutting Silicone Mold with Scalpel













Cutting Silicone Mold with Scalpel

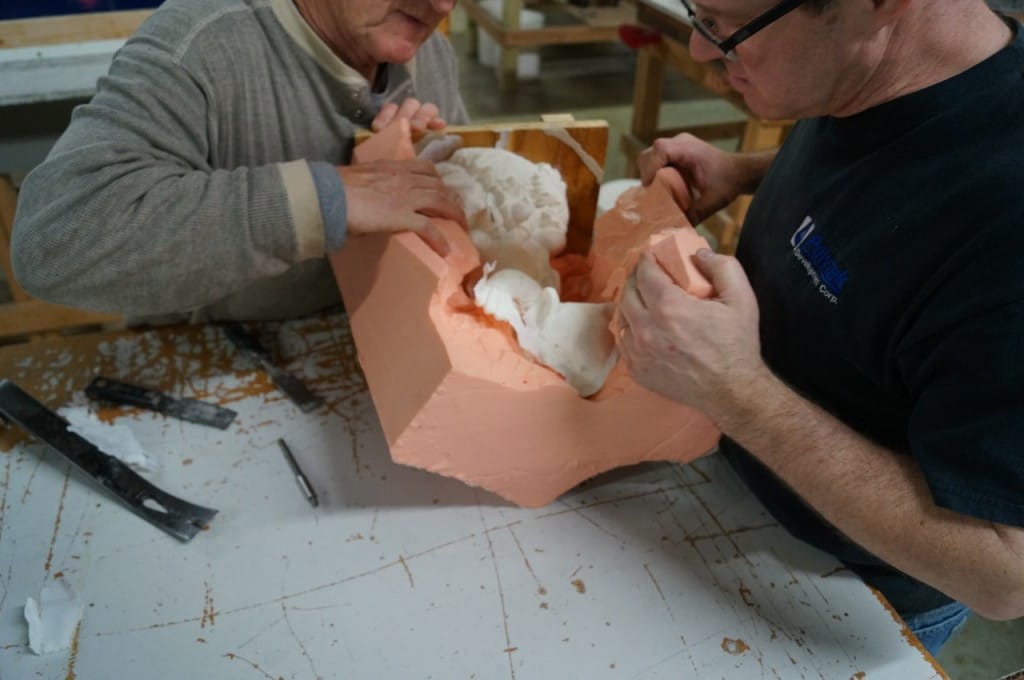

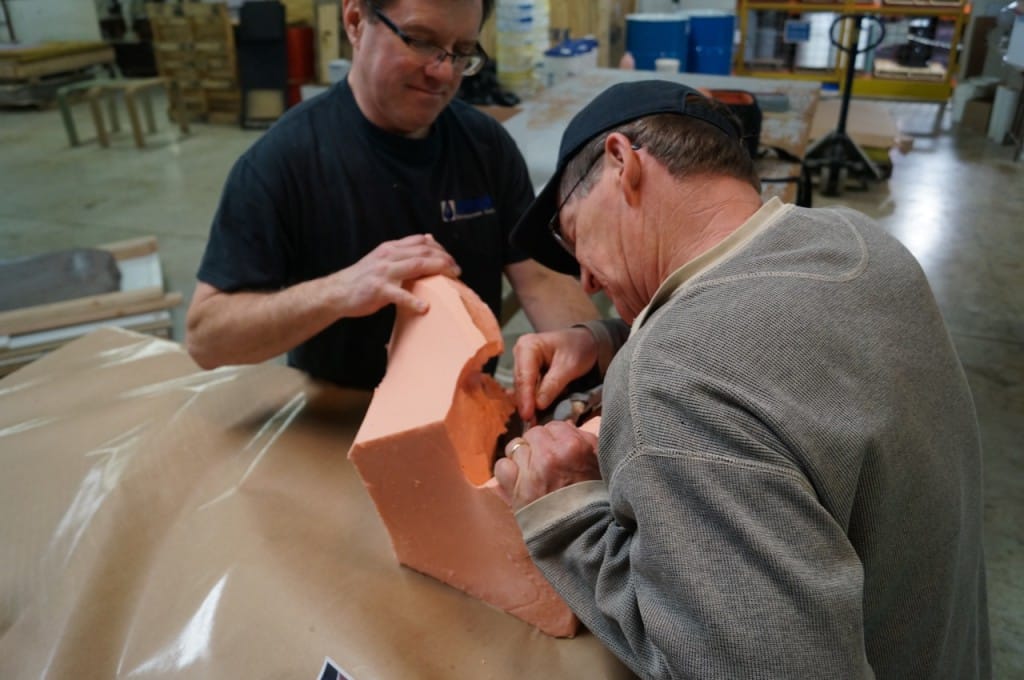

The remainder of the sculpture is removed from the mold and any clay left behind in the mold is cleaned out.













Remove Remainder of Sculpture

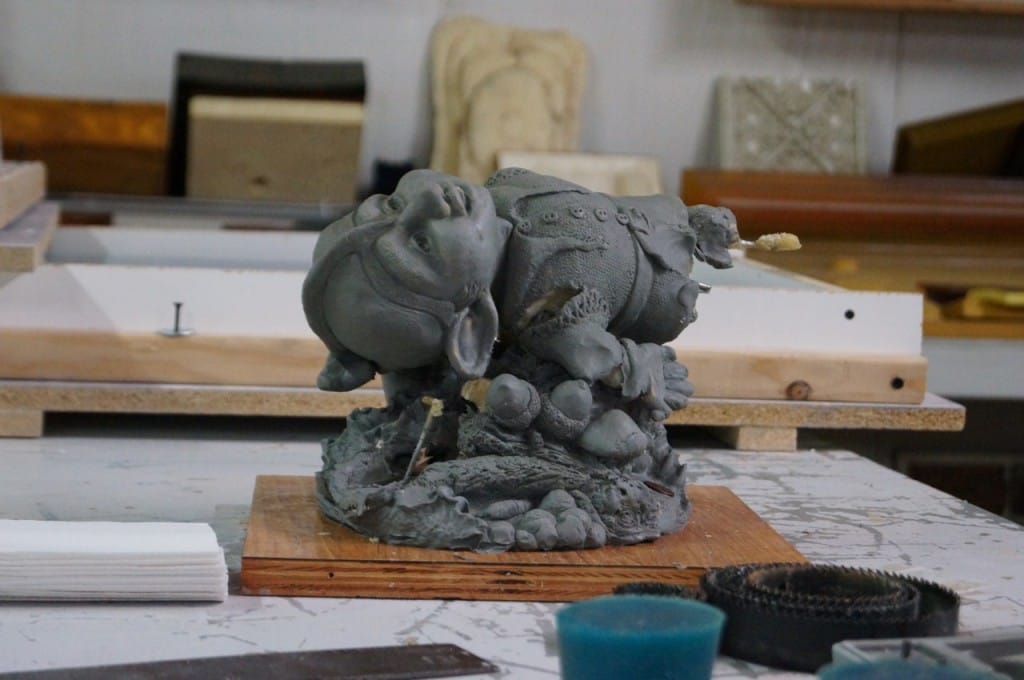

Sculpture After Mold Making













Clean Clay from Mold








Step 6: Rotational Casting

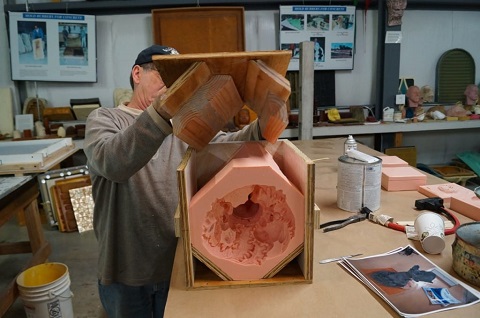

The mold is placed back into the mold box and then secured.



Silicone Mold for Sculpture Reproduction






Reassemble Mold Box Around Mold













Secure Mold Box Around Mold



Because we plan to use the rotational casting machine, we create a mold box lid with a pour hole. This hole is where the fast-setting resin is poured once the mold box is on the rotational casting machine.













Create Pour Hole in Mold Box Lid

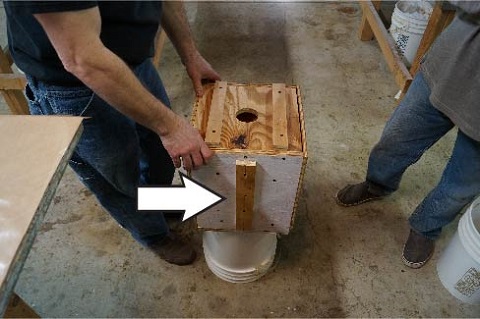

Wooden bars are added to the sides of the box in order to mount and attach it to the rotational casting machine.













Mold Box for Rotational Casting



A silicone plug will later be used to plug the hole when casting.













Silicone Plug for Rotocasting

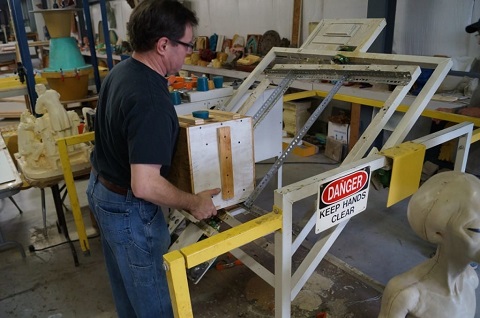

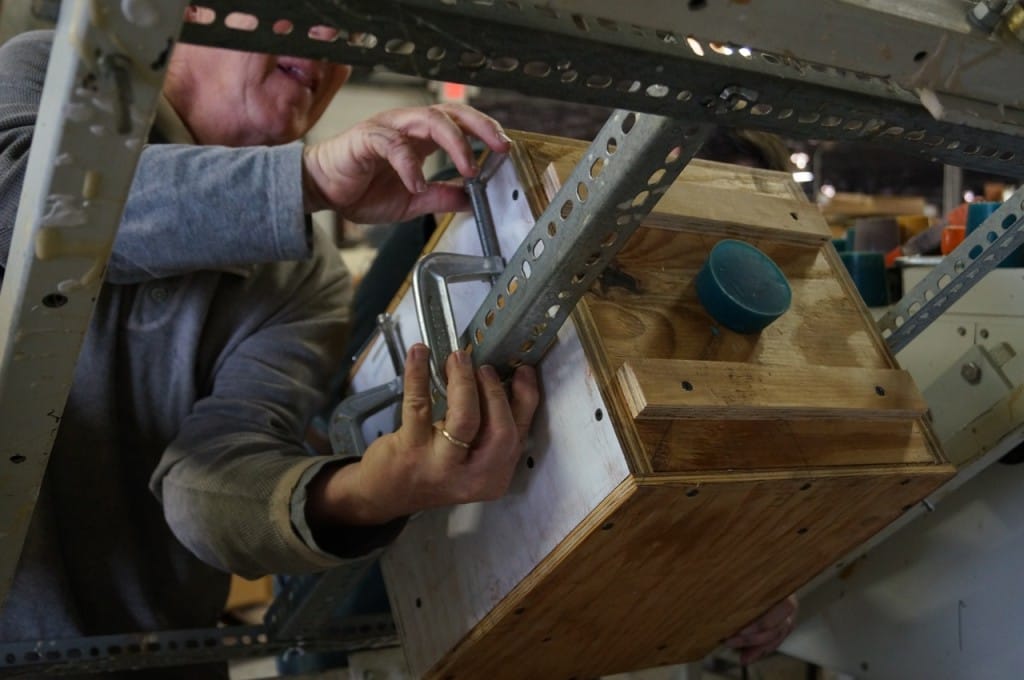

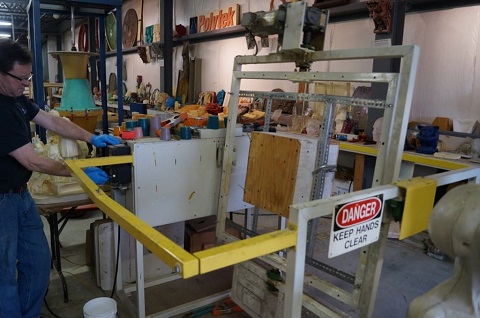

The mold box is loaded onto the rotational casting machine and secured with C-Clamps.













Place Mold Box on Rotational Casting Machine













Secure Mold Box with C-Clamps for Rotational Casting

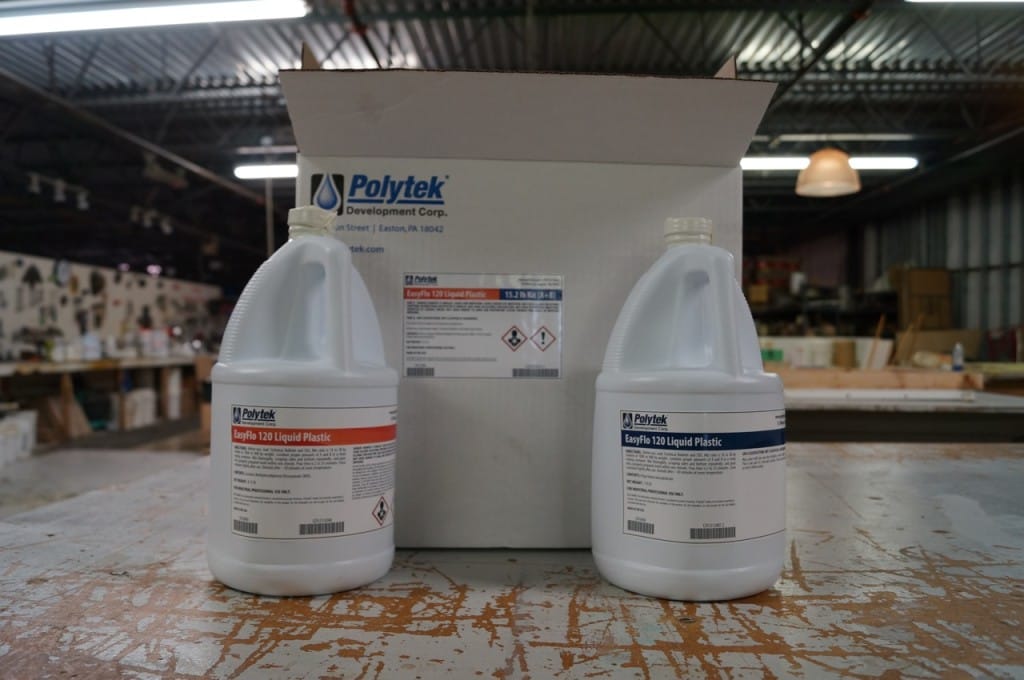

EasyFlo 120 Liquid Plastic is the product that we most often recommend for rotational or slush casting. It is designed to gradually solidify over its working time, as opposed to “snap-set” (like the curing characteristics of EasyFlo 60, another product with the EasyFlo Series). This gradual thickening over the last 30-45 seconds of the working time helps to provide an even coat.







EasyFlo 120 Casting Resin - Polytek








EasyFlo 120 Liquid Plastic: Specifications

Hardness: Shore D65
Mix Ratio: 1A:1B by volume, 100A:90B by weight
Pour Time: 2-2.5 minutes
Mixed Viscosity: 120 cP
Demold Time: 15-30 minutes
Cured Color: White
Specific Volume: 26.9 in³/lb





Approximately 2 lb of EasyFlo 120 is thoroughly mixed and poured into the mold.

NOTE: Ideally, this resin should be mixed and poured in under a minute.





Resin for Rotocasting

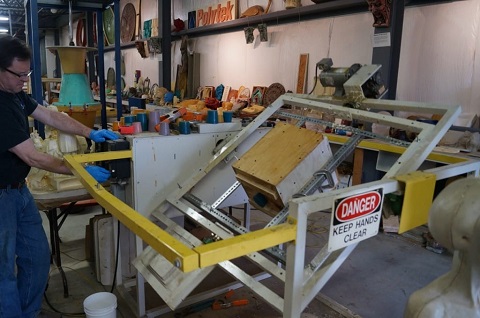

The pour hole is plugged with the silicone plug and then the machine is turned on.




Run the Rototational Casting Machine













Rotational Casting - Sculpture Reproduction

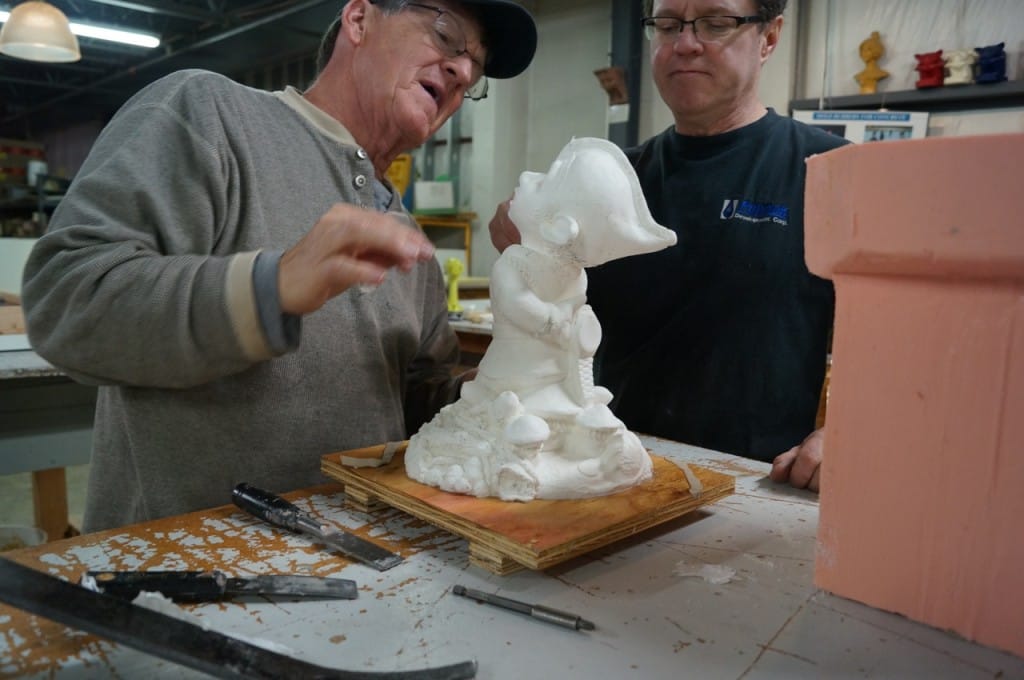

After ~30 minutes, the mold is removed from the rotational casting machine and then the casting is removed from the mold.













Plastic Casting - Rotational Casting













Hollow EasyFlo 120 Plastic Casting

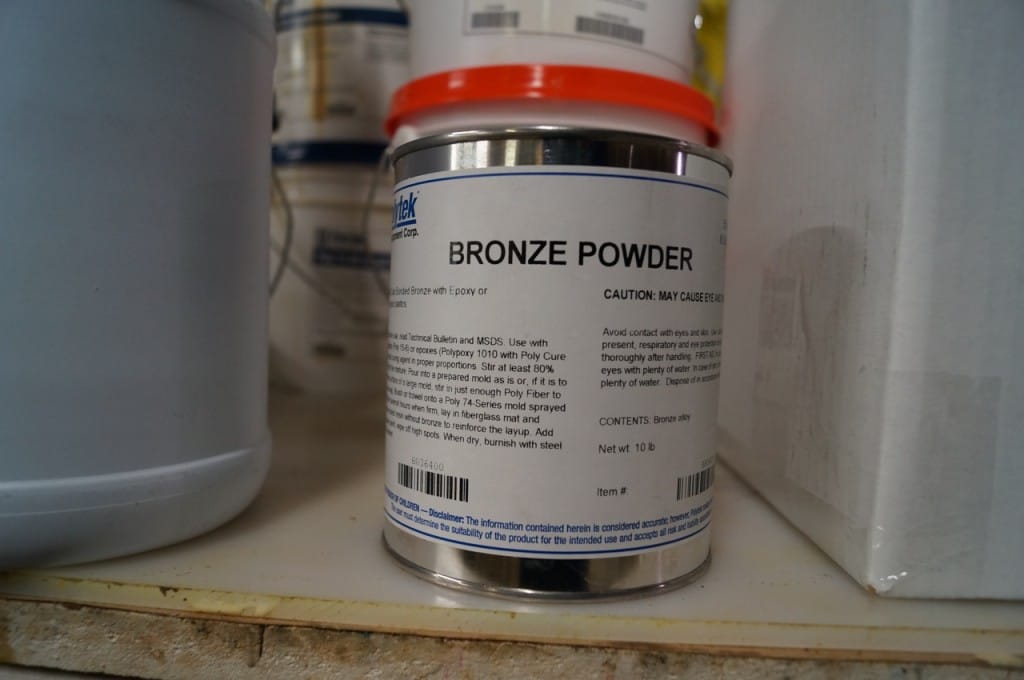

For the next run, we mix EasyFlo 120 + Brown PolyColor Dye + Bronze Powder to produce a cold cast bronze copy.







Bronze Powder for Cold Cast Bronze

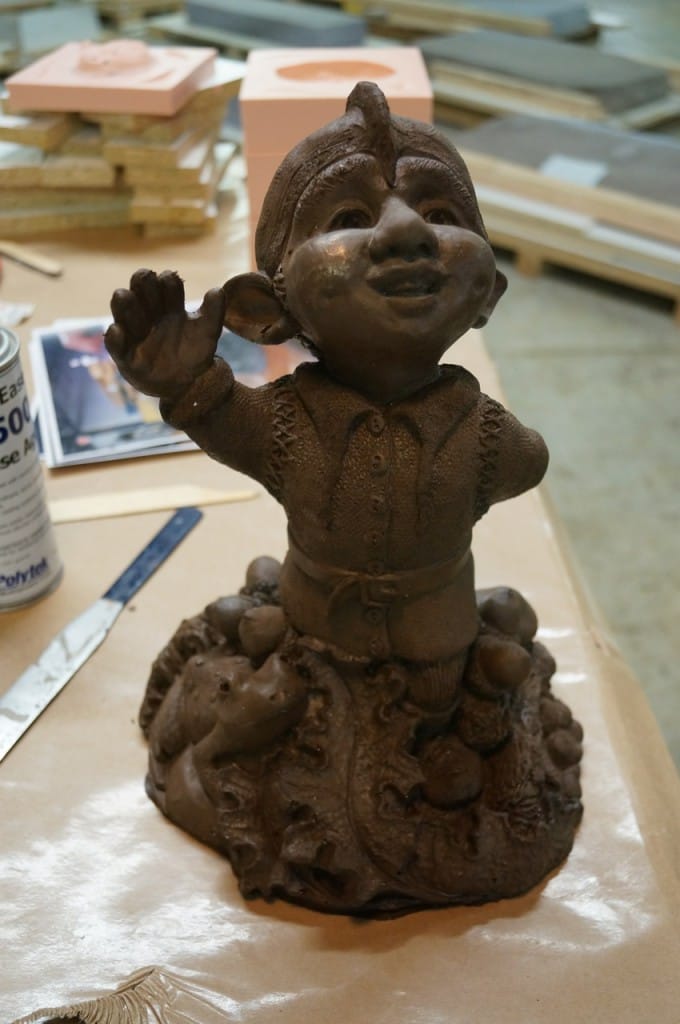

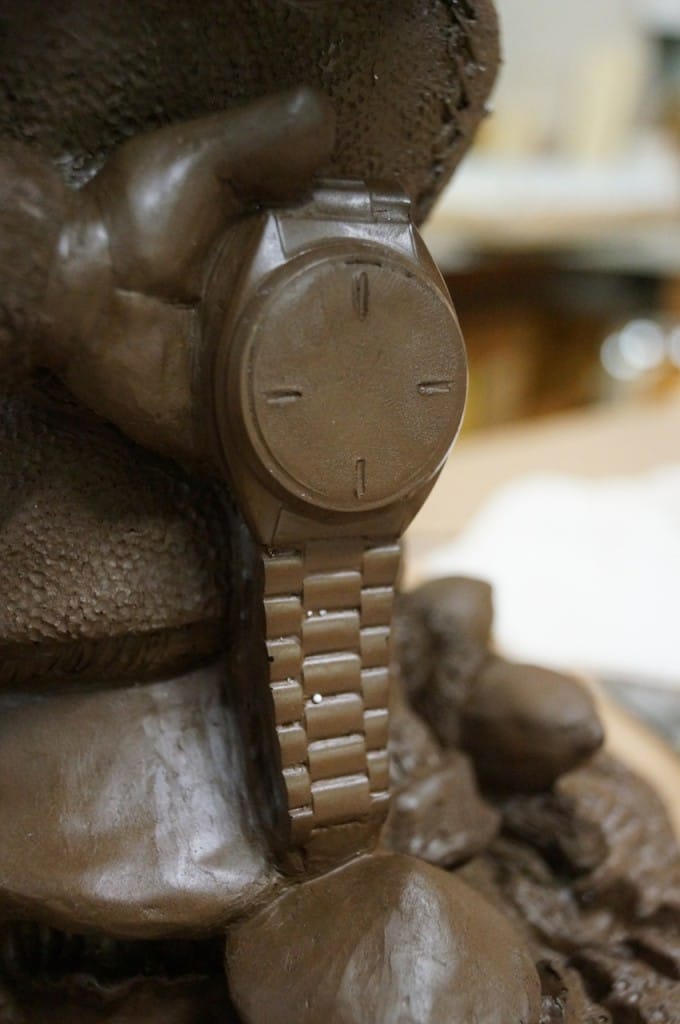

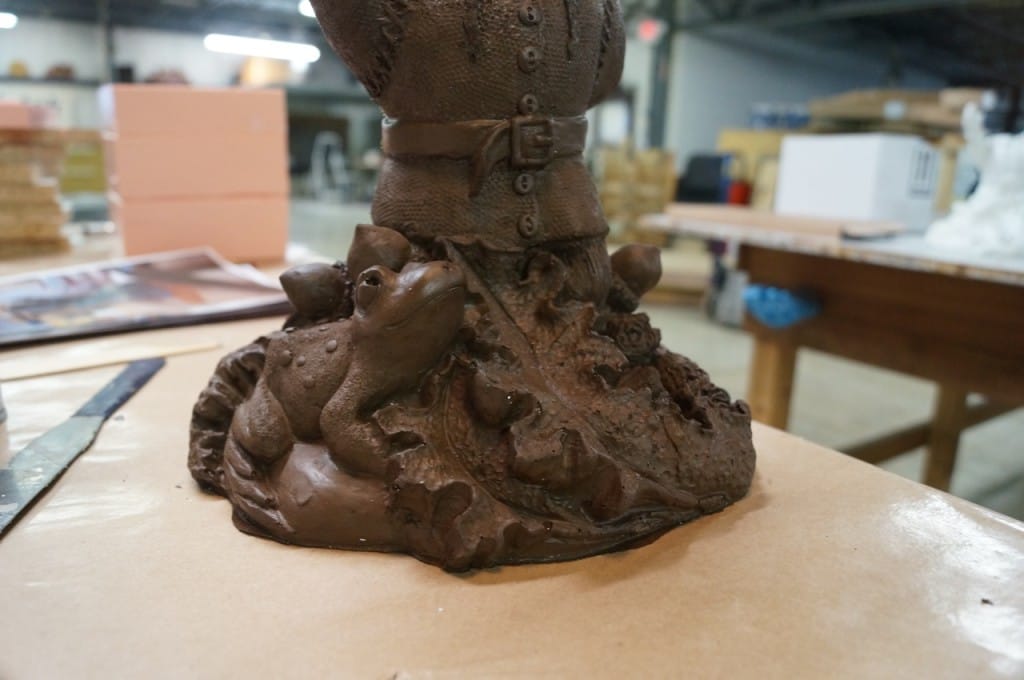

Here are some photos of the cold cast bronze piece prior to burnishing with steel wool (steel wool is used to expose the bronze powder on the surface of the casting). Initially, castings will appear chocolate brown; you will notice a small spot on his cheek that has been burnished.





Cold Cast Bronze Casting - Sculpture Reproduction






Cold Cast Bronze - Sculpture Detail













EasyFlo 120 Casting Resin - Great Detail

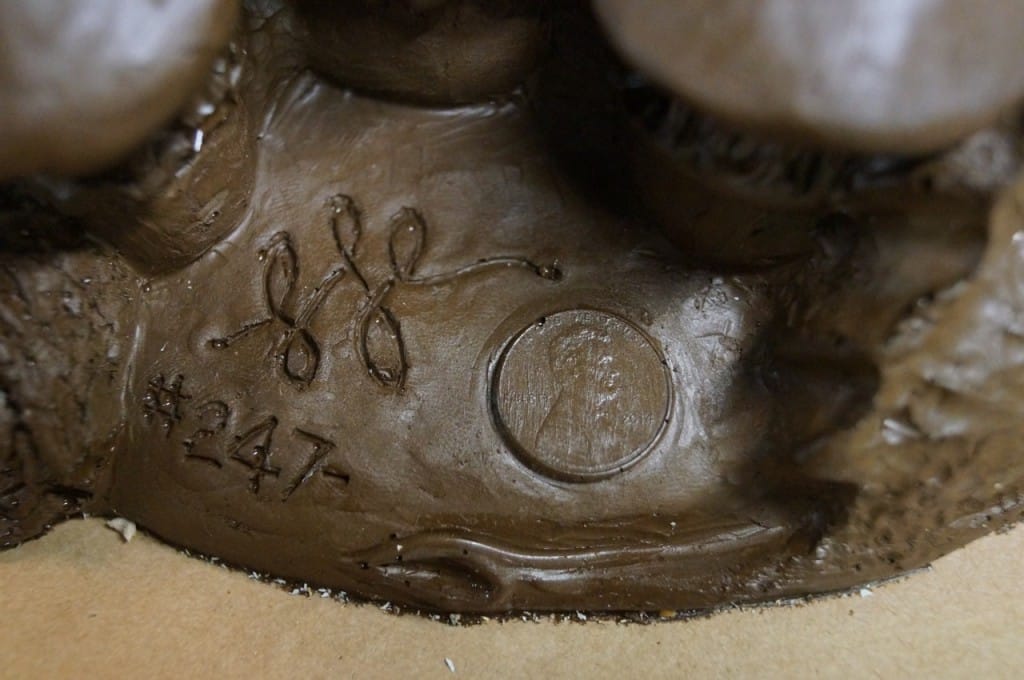

Penny Detail on Casting



Hollow castings such as these can be backfilled with a number of products, including less expensive resin or polyurethane foam.
